Positioning aid "C5" for rear door, left ("D5" right)
WARNING: This page is about a different variant/trim than selected.
Detach prestamped positioning aid from backing.
- Positioning aid "C5" rear door, left (door lock, bottom)
- Positioning aid "D5" rear door, right (door lock, bottom)

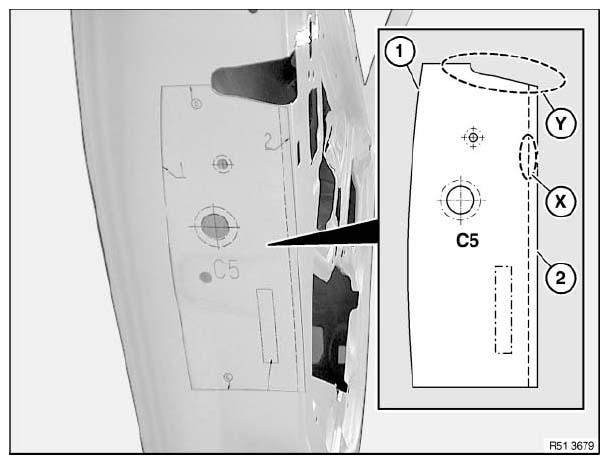

If necessary, cut out prestamped cutouts for bores from positioning aid. Align positioning aid with printed help markings (X, Y), bore and contact edge (2) to rear door and press.
Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Opening for door lock
