Positioning aid "C3" for rear door, left ("D3" right)
WARNING: This page is about a different variant/trim than selected.

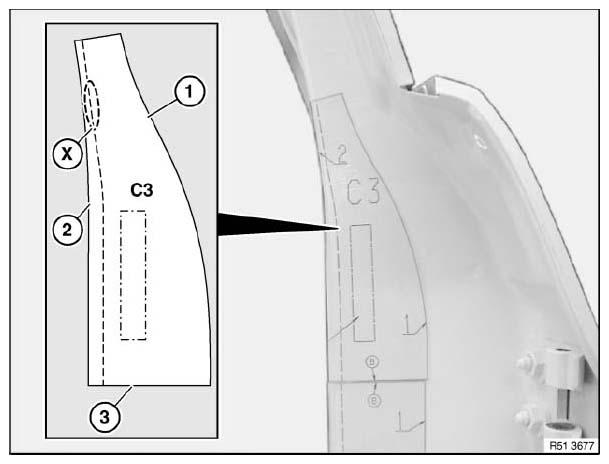

Detach prestamped positioning aid from backing.
- Positioning aid "C3" rear door, left (above positioning aid "C2")
- Positioning aid "D3" rear door, right (above positioning aid "D2")
Align positioning aid with printed help marking (X) and contact edge (2 and 3) to rear door and positioning aid "C2" or "D2" and press.
Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
