Positioning aid "C2" for rear door, left ("D2" right)
WARNING: This page is about a different variant/trim than selected.
Detach prestamped positioning aid from backing.
- Positioning aid "C2" rear door, left (door retainer)
- Positioning aid "D2" rear door, right (door retainer)

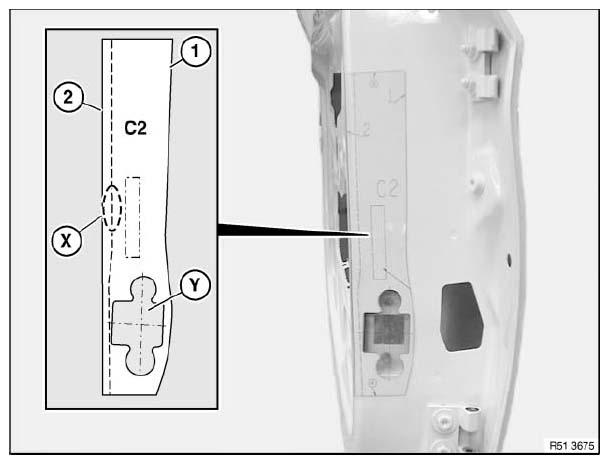

If necessary, cut out prestamped aperture (Y) from positioning aid. Align positioning aid with printed help marking (X), aperture (Y) and contact edge (2) to rear door and press.
Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Aperture for door retainer
