E90 only - Positioning aid "C6" for rear door, left ("D6" right)

WARNING: This page is about a different variant/trim than selected.

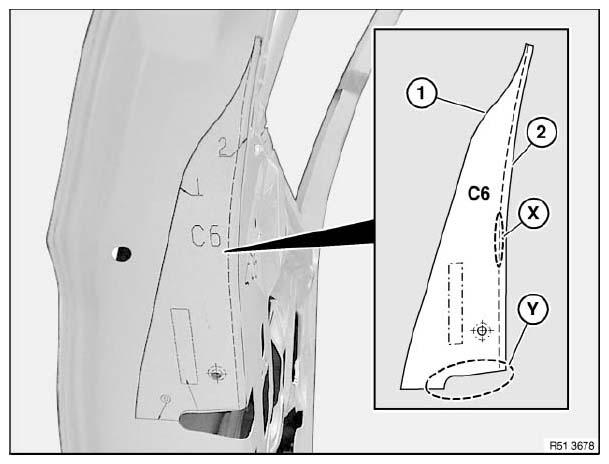

Fig 1: Positioning Aid C6 For Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Positioning aid "C6" or "D6" for E90 only.
Positioning aid "C7" or "D7" for E91 only.

Detach prestamped positioning aid from backing.

Positioning aid "C6" rear door, left (door lock, top)
Positioning aid "D6" rear door, right (door lock, top)

If necessary, cut out prestamped cutout for bore from positioning aid. Align positioning aid with printed help markings (X, Y), bores and contact edge (2) to rear door and press.

Seal must rest on positioning edge (1) during sticking.

X Start of bend radius

Y Opening for door lock
