51 71 039 Removing and installing/replacing front left or right wheel arch cover (rear section)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Work shown on 320d by way of example, deviations in detail are possible in other models.

Release screws (1).

Release expander rivets (2).

Unscrew nut (3).

Remove wheel arch cover (4).

Installation:

Ensure wheel arch cover (4) is correctly seated.

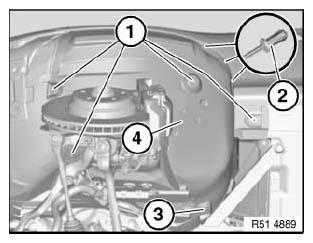

Fig 1: Identifying Expander Rivets, Wheel Arch Cover, Nut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
