51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Work shown on 320d by way of example, deviations in detail are possible in other models.

Release screws (1 and 2).

Unscrew nut (3).

Remove wheel arch cover and disconnect plug connection at trigger transmitter.

Installation:

Make sure rear wheel arch cover and air guide (4) are correctly seated.

Fig 1: Identifying Air Guide, Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify covers (1 and 2).

Modify air guide (3).

Version with Tyre Pressure Control:

Modify trigger transmitter (4).

Fig 2: Identifying Trigger Transmitter, Air Guide And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with M Technic aerodynamic kit:

Release screws (1).

Remove lower section of cover (2).

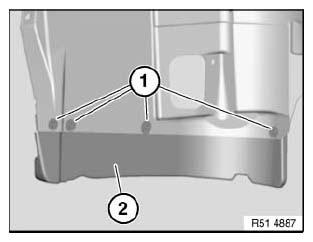

Fig 3: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
