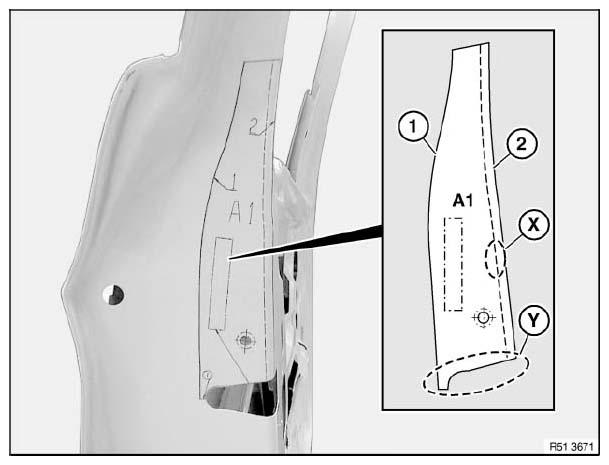

Positioning aid "A1" for front door, left ("B1" right)
WARNING: This page is about a different variant/trim than selected.
Detach prestamped positioning aid from backing.
- Positioning aid "A1" front door, left (door lock, top)
- Positioning aid "B1" front door, right (door lock, top)
If necessary, cut out cutout for bore from positioning aid. Align positioning aid with printed help markings (X, Y), bores and contact edge (2) to front door and press.
Seal must rest on positioning edge (1) during sticking.
X Start of bend radius
Y Opening for door lock
