51 47 161 Removing and installing / replacing right luggage compartment wheel arch trim
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove Trim On Rear Apron
- Remove Flap In Luggage Compartment Panel
Version with through-loading system:
- Fold down backrest for right rear seat
Specification with pocket holder:

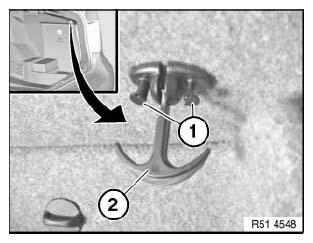

Pull expander rivets (1) out of pocket holder (2) and remove pocket holder (2).

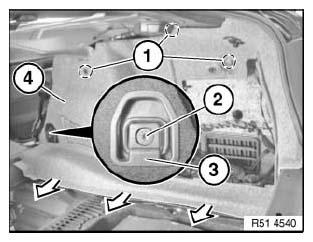

Release clips (1).
Release screw (2) and remove cover (3).
Feed out luggage compartment wheel arch trim (4) in direction of arrow.
Installation in version without through-loading system only:
Installation:
To install luggage compartment wheel arch trim, proceed as follows:
- Remove Rear Seat

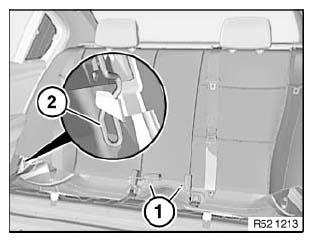

- Unscrew screws (1).
- Press backrest from luggage compartment in direction of vehicle interior and feed luggage compartment wheel arch trim between wheel arch and backrest
For tightening torque refer to 52 24 01AZ in 51 24 REAR LID LOCKS .
Replacement:

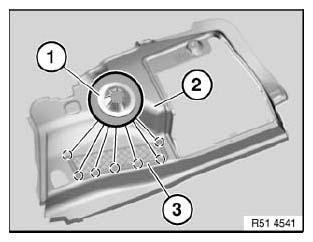

If necessary, release retainers (1) on back of luggage compartment wheel arch trim (2) and remove securing net (3).
