51 43 251 Removing and installing/replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page is about a different variant/trim than selected.

WARNING: Follow Safety Instructions for working on vehicles with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head airbag).

Detach mucket (1) in area of trim panel for roof pillar (4).

Lever out cap (2) and release screw underneath.

For tightening torque refer to 51 43 2AZ in 51 43 SIDE TRIM PANEL WITH ARMRESTS .

Pull trim panel for roof pillar (4) in direction of arrow and detach from clips (3).

Installation:

Fit trim panel (4) over openings for clips (3) and snap into place.

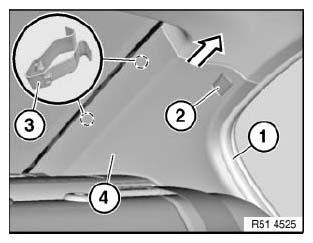

Fig 1: Identifying Roof Pillar Trim Panel, Clips, Mucket And Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1 and 2) must not be damaged or missing.

If necessary, replace faulty clips (1 and 2).

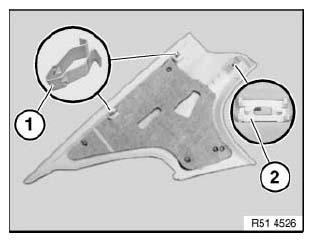

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
