51 42 018 Replacing speaker trim on rear left or right door trim panel

Special tools required:

• 00 9 317

Carefully lever out trim (1) with special tool 00 9 317 and remove.

Installation:

Trim (1) can only be installed in one position.

Turn trim (1) until catches on trim (1) match up with mountings on door trim panel.

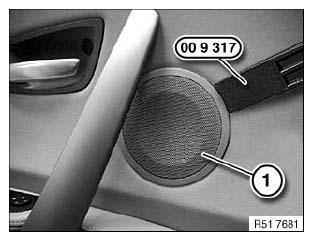

Fig 1: Identifying Trim And Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged or missing.

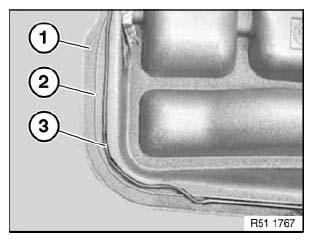

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
