51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release Bowden cable (1) from door lock (2).

Installation:

Bowden cable (1) must be correctly engaged in locators in door lock (2).

Bowden cable (1) must be laid without kinks in bend to door lock (2).

IMPORTANT: Door cannot be opened if Bowden cable (1) is incorrectly laid.

Fig 1: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

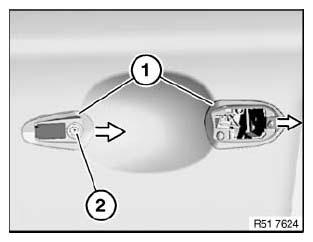

Remove seals (1) in direction of arrow.

Release screw (2).

Fig 2: Identifying Lock Seals And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

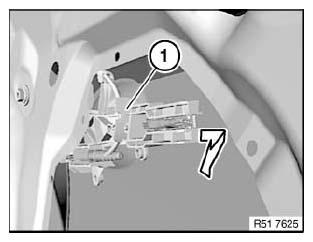

If necessary, release cable holder on carrier (1).

Remove inner carrier (1) in direction of arrow and feed out of door.

Fig 3: Identifying Door Inner Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, release cable connector (1).

Feed Bowden cable (2) out of carrier (3).

Fig 4: Identifying Cable Connector, Bowden Cable And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
