51 21 090 Removing and installing/replacing door lock in left or right front door

WARNING: This page is about a different variant/trim than selected.

Special tools required:

51 2 190

Necessary preliminary tasks:

Remove rear section of Power Window Unit

Driver's side only:

Remove Lock Cylinder Lock Cylinder

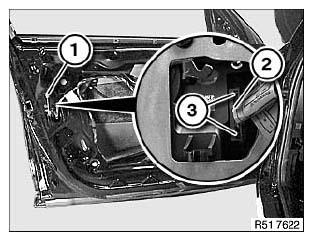

Unclip lock knob control rod (1).

Unlock and disconnect plug connection (2) at lugs (3).

Fig 1: Identifying Lock Knob Control Rod, Plug Connection And Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

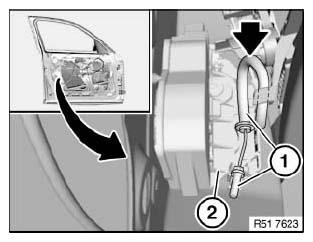

Unhook Bowden cable (1) from door lock (2).

If necessary, release cable holder on door lock (2).

Installation:

Bowden cable (1) must be correctly engaged in locators in door lock (2).

Bowden cable (1) must be laid without kinks in bend to door lock (2).

IMPORTANT: Door cannot be opened if Bowden cable (1) is incorrectly laid.

Fig 2: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage door lock seal when removing.

Release screws (1).

Remove door lock (2) from inside.

IMPORTANT: To avoid leaking and electrical malfunction:

Pull door lock (2) with special tool into corner (3), refer to illustrations Fig 6 and Fig 7.

Fig 3: Identifying Door Lock, Corner And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) on door lock (2) must not be damaged.

Fig 4: Locating Seal On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

E90/E91 driver's side only:

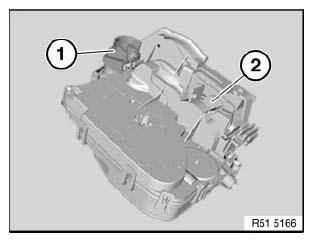

NOTE: Cover (1) protects against water ingress.

In event of problems with frozen door locks/lock cylinders, retrofit cover (1) on door lock (2) if necessary.

Fig 5: Identifying Cover And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install door lock and insert screws (1), do not tighten down.
Slide special tool 51 2 190 into opened rotary latch until latch engages in first stage.

Fig 6: Identifying Special Tool (51 2 190) And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pretension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3).

IMPORTANT: To tension door lock (1), it is only permitted to turn knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must rest uniformly on inner door plate (water ingress).

Fig 7: Identifying Door Lock, Knurled Screw, Contact Corner Points And Special Tool (51 2 190)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down door lock screws, for tightening torque refer to 51 21 1AZ in 51 21 FRONT DOOR LOCKS .
