51 16 040 Removing and installing/replacing housing on left or right door mirror

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Housing (2) is secured without play by four multitooth catches (1) on retaining ring (3).

Secure housing on door mirror (2) against falling out.

Unlock multitooth catches (1) with a screwdriver.

Unclip housing (2) forwards from retaining ring (3) and remove.

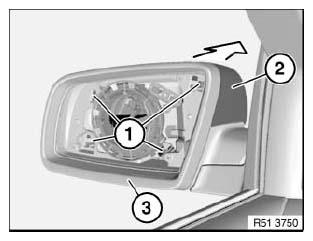

Fig 1: Identifying Multitooth Catches, Housing And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Multitooth catches (1) and guide (2) on housing (3) must not be damaged.

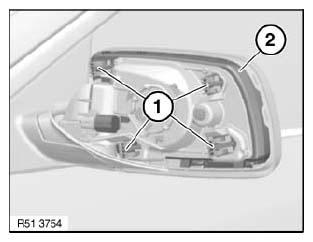

Fig 2: Identifying Multitooth Catches, Guide And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locators (1) on retaining plate (2) must not be damaged.

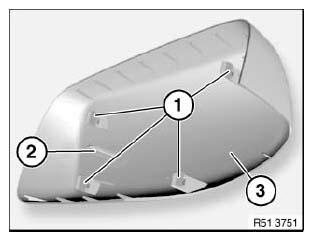

Fig 3: Identifying Locators On Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.
