51 12 050 Removing and installing/replacing carrier for rear bumper trim

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: During replacement, all the cavities of the carrier (1) and the crashbox (2) must be sealed with cavity sealant.

Fig 1: Identifying Carrier And Crashbox

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

If necessary, release rubber mount (1) on carrier (2).

Unscrew nuts (3).

Remove carrier (2).

For tightening torque refer to 51 12 1AZ in 51 12 REAR BUMPER .

Installation:

If necessary, replace faulty sheet nuts (4).

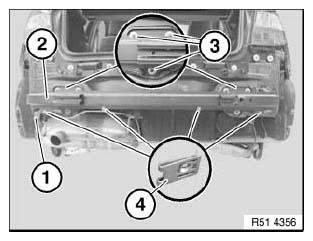

Fig 2: Identifying Rubber Mount, Carrier And Sheet Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
