Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Read out fault memory of control unit and, if necessary, print diagnostic record.
  2. Remove brake master cylinder for DSC. See MASTER CYLINDER .
    3. CAUTION: Seal off connection bores with plugs.
  3. Disconnect plug connection (1) to control unit. See Fig 1.
  4. Remove brake lines. See BRAKE LINES
  5. Release screw and feed out DSC unit with retaining fixture towards top.
  6. To install, reverse removal procedure. Tighten all screws and connections to specification. See TORQUE SPECIFICATIONS .

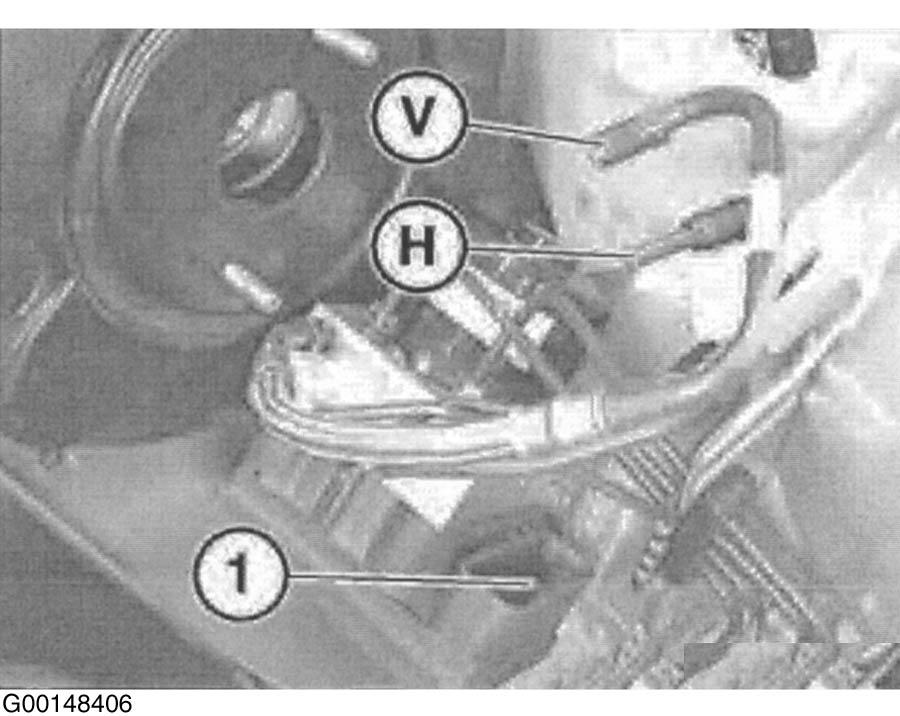

Fig 1: Locating Plug Connection
G00148406Courtesy of BMW OF NORTH AMERICA, INC.
