51 22 225 Removing and installing/replacing inside door opener of rear left or right door

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screws (1) on door opener (2).

Fig 1: Identifying Door Opener And Screws
G06885561Courtesy of BMW OF NORTH AMERICA, INC.

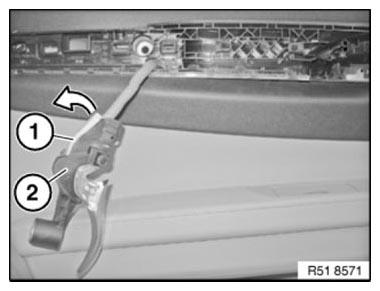

Unlock holder for Bowden cable (1) and remove door opener (2).

Fig 2: Removing Bowden Cable
G06885582Courtesy of BMW OF NORTH AMERICA, INC.
