51 22 001 Replacing door detent (lock striker), rear left or right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove lock striker.

Tightening torque 51 22 2AZ .

After installation:

Adjust DOOR DETENT .

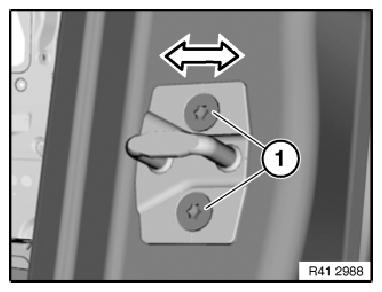

Fig 1: Sliding Lock Striker
G08511554Courtesy of BMW OF NORTH AMERICA, INC.
