51 16 405 Removing and installing/replacing sun protection on fond door window glass left and right

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL .

NOTE: Shown with door removed for purposes of clarity.

Trim panel overview:

Remove outer (1) and inner (2) trim panel.

Refer to the following steps.

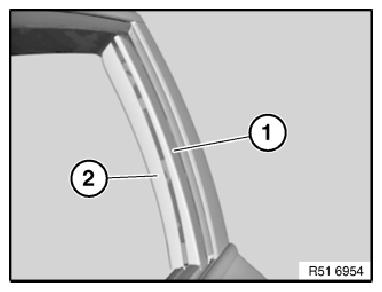

Fig 1: Identifying Outer And Inner Trim Panel

G08511454

Courtesy of BMW OF NORTH AMERICA, INC.

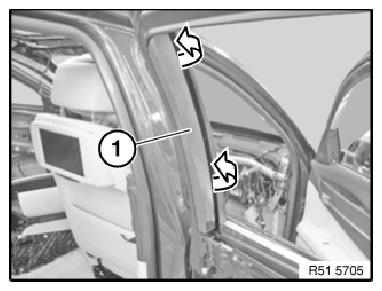

Unclip inner trim panel (1).

Fig 2: Disconnecting Inner Trim Panel

G08511455

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip outer trim panel (1).

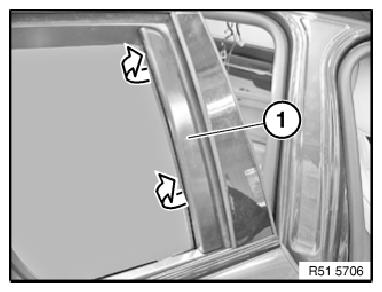

Fig 3: Disconnecting Outer Trim Panel

G08511456

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 17AZ .

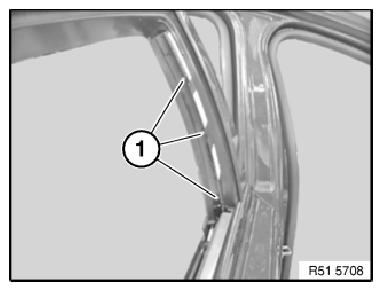

Fig 4: Identifying Trim Panel Screws

G08511457

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

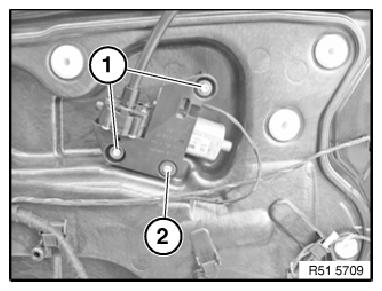

Fig 5: Identifying Door Window Screws

G08511458

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

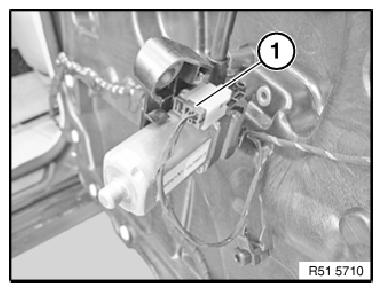

Fig 6: Identifying Plug Connection

G08511459

Courtesy of BMW OF NORTH AMERICA, INC.

First remove trim panel (1) on top (2).

Unhook trim panel (1), pulling it up at an angle (see arrow).

Installation:

Hook (arrow) and catches (2) must not be damaged.

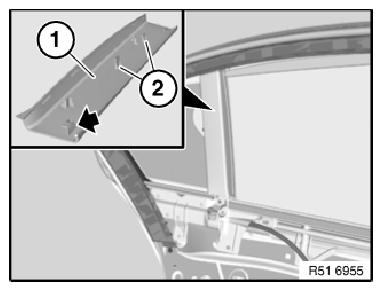

Fig 7: Removing Trim Panel

G08511460

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 16 18AZ .

Unlatch roller sun blind in marked area and remove.

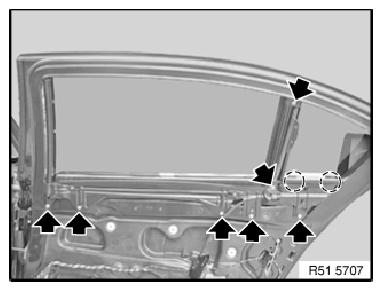

Fig 8: Locating Roller Sun Blind Screws

G08511461

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches of roller sun blind (1) must not be damaged.

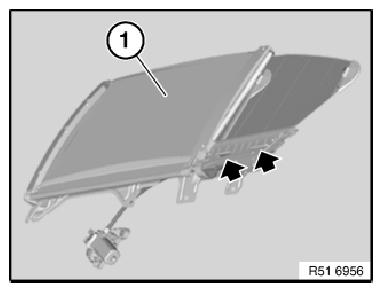

Fig 9: Locating Roller Sun Blind

G08511462
