51 22 090 Removing and installing/replacing door lock in left or right rear door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 2 190

Necessary preliminary tasks

Remove SOUND INSULATION .
Remove REAR FIXED DOOR WINDOW .
If necessary for special equipment, automatic soft close unit:

Removing POWER WINDOW UNIT

Disconnect Bowden cable at bottom (1) and top (3) from door lock (2).

Installation:

Bowden cable must be correctly engaged in locators in door lock (2).

Bowden cable must be laid without kinks in bend to door lock (2).

Seal (4) must be correctly fitted on Bowden cable.

IMPORTANT: Door cannot be opened if Bowden cable (1) is incorrectly laid.

Fig 1: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip locking rod (1).

Fig 2: Identifying Locking Rod

Courtesy of BMW OF NORTH AMERICA, INC.

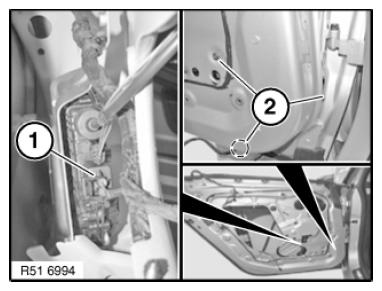

Version with Soft Close Automatic:

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 51 22 6AZ .

Fig 3: Identifying Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage door lock seal when removing.

Release screws (1).

Tightening torque 51 22 1AZ .

Fig 4: Identifying Door Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) on door lock (3) must not be damaged.

Fig 5: Identifying Seal And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with Soft Close Automatic:

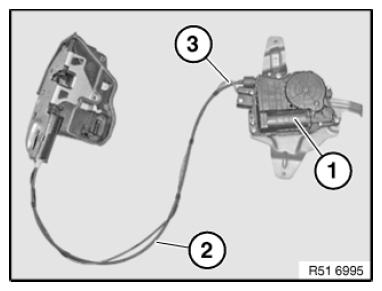

Make sure Soft Close Automatic drive (1) is installed in correct installation position.

Control line (3) must not be twisted around Bowden cable (2).

Make sure the control line (3) and Bowden cable (2) are correctly laid.

Fig 6: Identifying Soft Close Automatic Drive, Control Line And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

For version with Soft Close Automatic:

IMPORTANT: In order for there to be enough adjustment range in the area (A), the Bowden cable (1) of the Soft-Close-Automatic must be in the recess in area (B) (risk of damage).

Fig 7: Identifying Bowden Cable Of Soft-Close-Automatic With Recessing Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install door lock and insert screws (1), do not tighten down.
Slide special tool 51 2 190 into opened rotary striker until striker engages in first stage

Fig 8: Identifying Special Tool (51 2 190) Into Rotary Striker
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pre-tension door lock (1) with knurled screw (2) until special tool 51 2 190 just contacts corner points (3)

IMPORTANT: To tension door lock (1), it is only permitted to tighten knurled screw (2) by a further 1 to 1.5 turns (max.) (risk of damage).
Door lock seal must rest uniformly on inner door plate (water ingress).

Fig 9: Identifying Door Lock, Screws And Special Tool (51 2 190)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down door lock screws, tightening torque 51 22 1AZ .
