52 17 205 Removing and installing/replacing both rear panels on left or right front seat backrest (model year 2009 through production date 07/2012)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This removing/installing/replacing procedure applies to "Comfort" seat version.

Operation is shown on the left seat. When removing from the right seat, transpose the pull and striking sides accordingly.

Rear panel upper section:

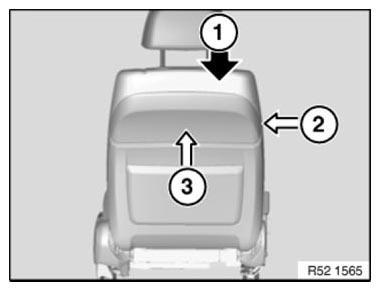

Grip between rear panel and backrest cover on tunnel side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.

Fig 1: Pulling Rear Panel Up Out Of Lower Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Upper retainers spring out of seat guide.

Pull upper rear panel up out of lower guides.

NOTE:

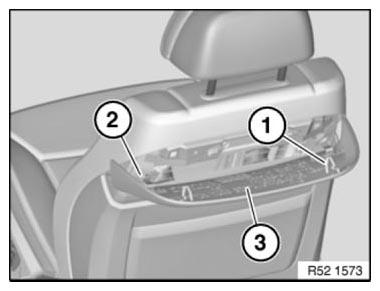

Retainer
Guide
Upper rear panel

Fig 2: Identifying Retainer, Guide And Upper Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Rear panel trim lower section:

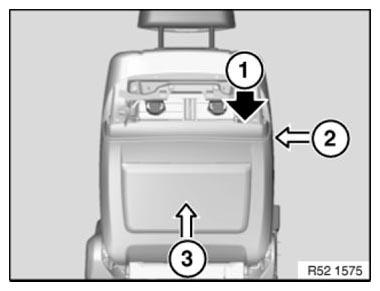

Grip between rear panel and backrest cover on tunnel side until clip can be felt (do not pull).
At same time, firmly punch towards middle of seat on inner side (tunnel side) at top.
Upper retainers spring out of seat guide.
Pull lower rear panel up out of lower guides

Fig 3: Pulling Lower Rear Panel Up Out Of Lower Guides

Courtesy of BMW OF NORTH AMERICA, INC.

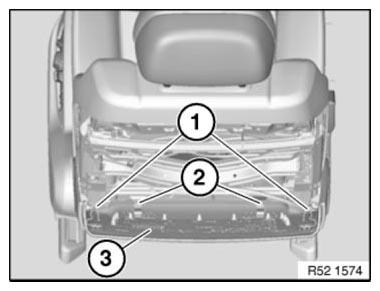

Unclip springs (1) on left and right.

Remove lower rear panel (3) upwards out of guide (2).

Fig 4: Identifying Springs, Lower Rear Panel And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
