51 16 282 Removing and installing/replacing left or right lower housing section (up to 07/12)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COVER CAP ON LEFT EXTERIOR MIRROR

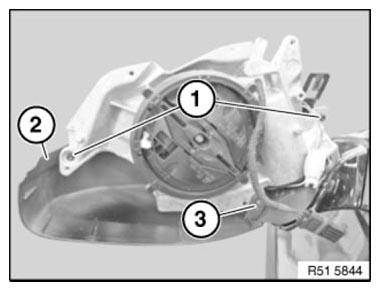

Release screws (1).

Pull off lower housing section (2) towards rear.

Installation note:

Make sure lower housing section (2) is correctly seated in area (3).

Fig 1: Identifying Lower Housing Section And Screws

G06885467

Courtesy of BMW OF NORTH AMERICA, INC.

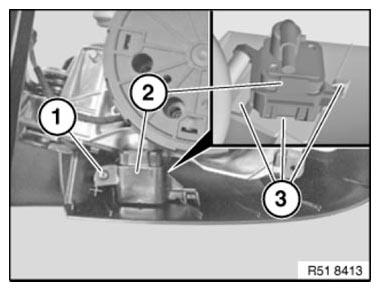

Version with exterior mirror camera:

Release screw (1) and feed out holder (2).

Installation note:

Small picture with view of rear.

Holder (2) must be correctly seated in guides (3).

Fig 2: Identifying Screw, Holder And Guides

G06885468

Courtesy of BMW OF NORTH AMERICA, INC.

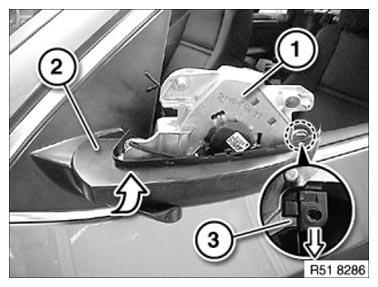

Fold exterior mirror (1) back.

Lift cover cap (2) downwards over catch (3).

Feed cover cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Cover cap (2) must be bent slightly during removal.

Fig 3: Feeding Cover Cap

G06885469

Courtesy of BMW OF NORTH AMERICA, INC.
