SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 05 86 (604)

Consisting of:

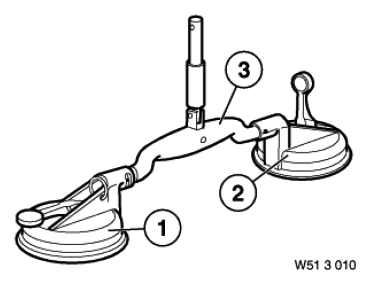

Fig 1: Identifying Siphon (513010)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0493119 Suction cup

NOTE: With elongated hole, suspension can be moved around all axles. Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635)

2 = 0493120 Suction cup

NOTE: With bore hole, suspension can only be moved in longitudinal direction. Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635).

3 = 0493121 Handle

NOTE: (Grab handle): Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635).

2 = 0493267 Plate

NOTE: (rubber plate without joint)

2 = 0493268 Joint

NOTE: (joint without rubber plate)
