01 06 02 (864)

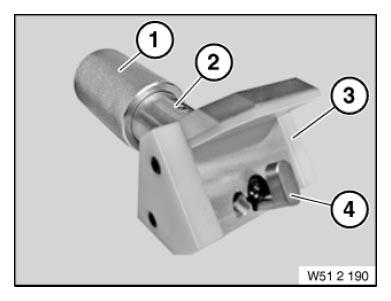

Fig 1: Identifying Adjuster (512190)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

2 = 0494472 Guard

NOTE: Is replaced by 51 2 196 with the use of noise-optimized locks from 02/2004 Replaced by 51 2 196 (0 494 906)

2 = 0494473 Mandrel

NOTE: Is replaced by 51 2 197 with the use of noise-optimized locks from 02/2004 Replaced by 51 2 197 (0 494 907)

4 = 0494907 Mandrel

NOTE: Replaces mandrel 51 2 194

1 = 0494470 Nut

NOTE: (Knurled nut)

2 = 0494471 Support

2 = 0494474 Shaped element

NOTE: E85 (discontinued)

3 = 0494906 Guard

NOTE: Replaces guard 51 2 193
