GSM Antenna

Installation location

E63, E64:  The antennae are installed under the interior trim of the tailgate. As the tailgate is made of plastic, there is no interference with reception.

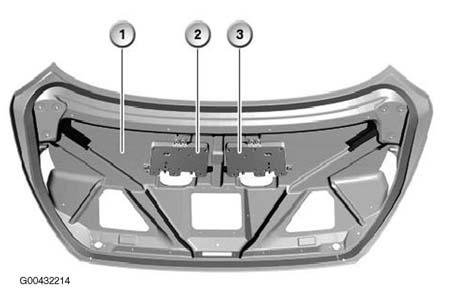

Fig 1: Locating E63 And E64: GSM Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

E87:  The GSM antenna is integrated into the rod aerial. The rod aerial is also used for FM/AM/telephone and GPS reception. The rod aerial is fitted to the roof of the vehicle.

E60, E61, E90:

The GSM antenna is integrated into the telephone and GPS aerial. The telephone and GPS aerial is installed on the rear edge of the roof.

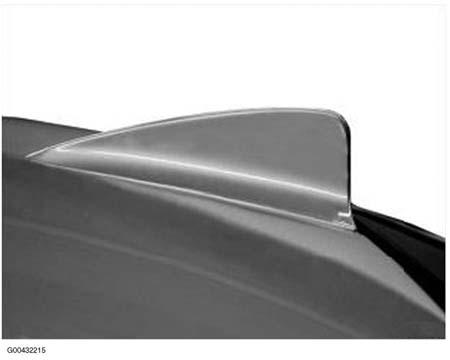

Fig 2: Locating E60, E61 And E90: GSM Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Construction

E60, E61, E90:  The technology of the external aerial is explained below.

The configuration of the European version of the GSM antenna depends on the special equipment installed. The following configurations are used:

• Aerial for telephone only
• Aerial for telephone and GPS aerial (Global Positioning System) for navigation

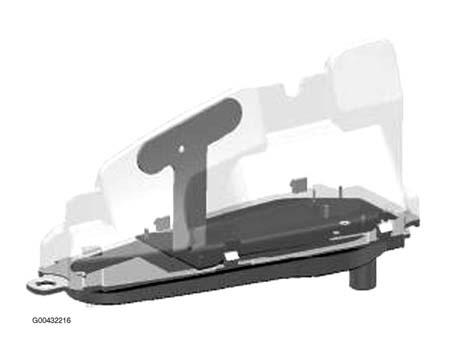

Fig 3: Identifying Arial For Telephone

Courtesy of BMW OF NORTH AMERICA, INC.

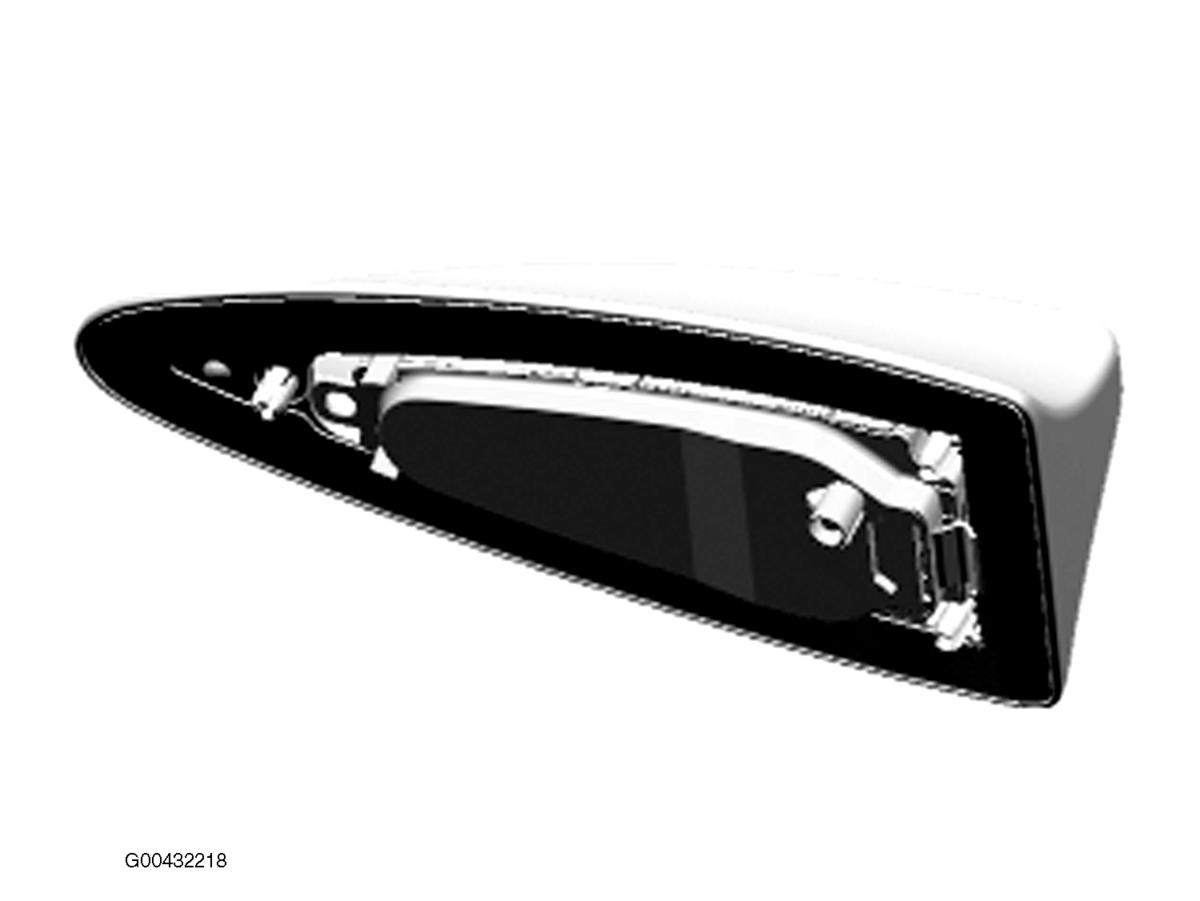

Fig 4: Identifying Connector For Telephone Arial

Courtesy of BMW OF NORTH AMERICA, INC.

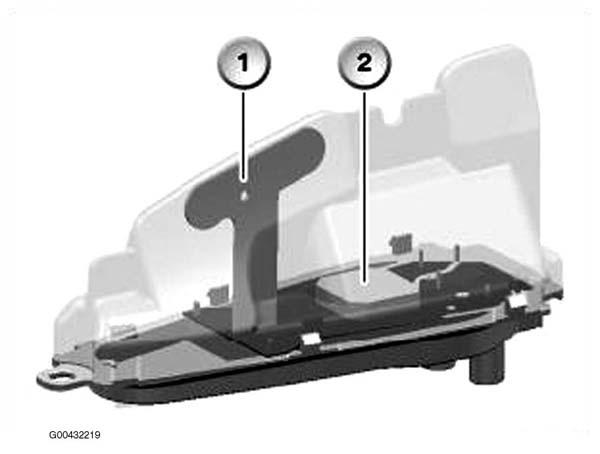

Fig 5: Identifying Telephone Arial And GPS Arial

Courtesy of BMW OF NORTH AMERICA, INC.

1. Telephone aerial
2. GPS aerial (Global Positioning System)

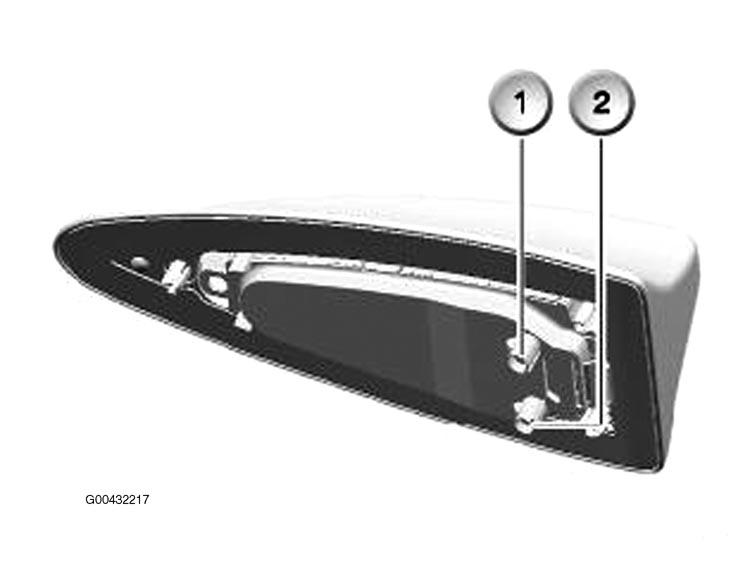

Fig 6: Identifying Arial Connectors For Telephone And GPS

Courtesy of BMW OF NORTH AMERICA, INC.

1. Aerial connector for telephone aerial
2. Aerial connector for GPS aerial

How it works

The GSM antenna is a dual-band aerial for mobile phones. The European version of the GSM antenna is configured for the frequency ranges 900/1800 MHz.
