E60, E61, E63, E64, E87, E90: Bluetooth Antenna
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
- E60, E61: In the center armrest, under the base plate for mobile phone
- E63, E64: Under the rear shelf
- E87, E90: In an enclosed housing behind the lower trim of the steering column

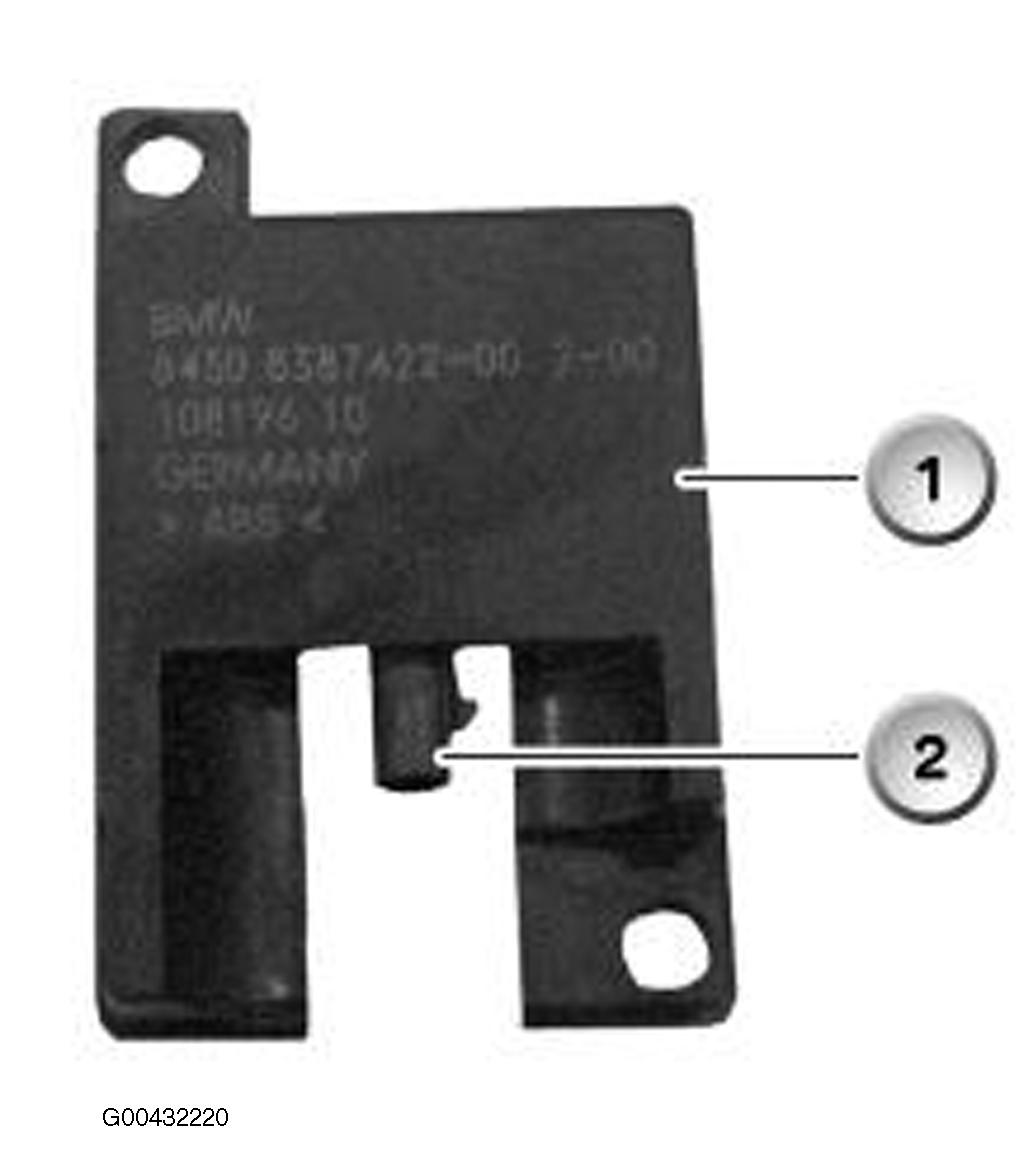

Construction
The Bluetooth antenna is accommodated in a closed casing.
- Bluetooth antenna
- Aerial connector
How it works
The bluetooth antenna is the transmit/receive aerial for the ULF control unit for communications with equipment with bluetooth interface. The bluetooth antenna is designed for a frequency of 2.45 GHz.
