E60, E61, E63, E64, E87, E90: ULF system overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

This system overview comprises the following overviews:

Inputs/outputs

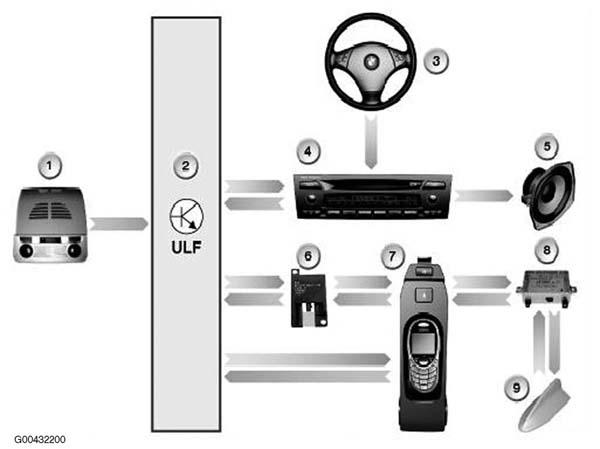

Fig 1: Identifying ULF System Inputs/Outputs
G00432200Courtesy of BMW OF NORTH AMERICA, INC.
ULF SYSTEM INPUTS/OUTPUTS LEGEND

Key Explanation Key Explanation
1 Roof function centre (FZD) with hands-free microphone 2 Control unit for universal charger and hands-free facility (ULF)
3 Multi-function steering wheel 4 Radio Professional (RAD2),
- (MFL, optional) - CCC or M-ASK optional
5 Loudspeaker 6 Bluetooth antenna
7 Base plate and snap-in adapter with mobile phone 8 Compensator (optional)
9 Roof-mounted telephone aerial (GSM) - -

E60, E61, E63, E64: System circuit diagram

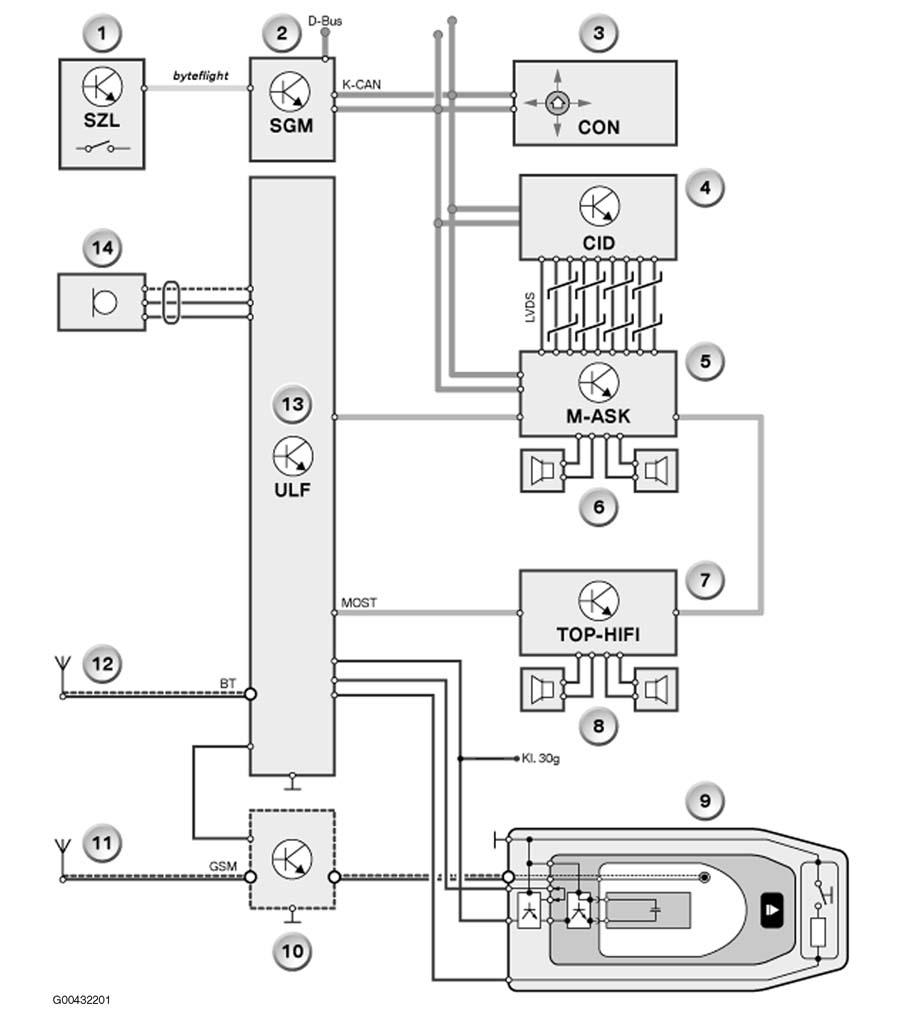

Fig 2: Identifying ULF System Circuit Diagram (E60, E61, E63, E64)
G00432201Courtesy of BMW OF NORTH AMERICA, INC.
ULF SYSTEM CIRCUIT DIAGRAM (E60, E61, E63, E64) LEGEND

Key Explanation Key Explanation
1 Steering column switch cluster (SZL) 2 Safety and gateway module (SGM)
3 Controller (CON) 4 Central Information Display (CID)
5 Multi-audio system controller (M-ASK) 6 Loudspeaker
7 Top-HiFi amplifier (AMP) 8 Loudspeaker
9 Base plate with snap-in adapter 10 Compensator (optional)
11 Roof-mounted telephone aerial (GSM) 12 Bluetooth antenna
13 Control unit for universal charger and hands-free facility (ULF) 14 Hands-free microphone
byteflight Fibre-optic cable for especially fast data transmission D-Bus Diagnosis bus
K-CAN Body controller area network MOST Media-Oriented System Transport bus
Kl. 30g Terminal 30g (on-board supply voltage, active). Note: Terminal 30 modified since 09/2004, fuse allocation modified.

E87, E90: System circuit diagram

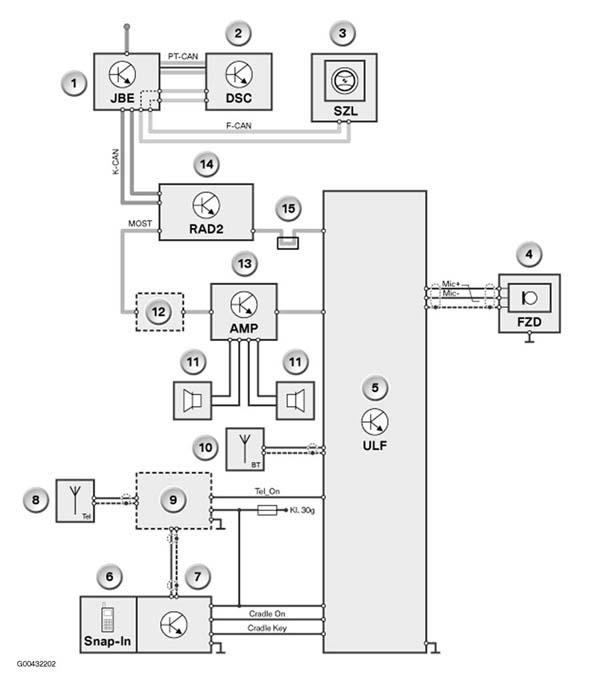

Fig 3: Identifying ULF System Circuit Diagram (E87, E90)
G00432202Courtesy of BMW OF NORTH AMERICA, INC.
ULF SYSTEM CIRCUIT DIAGRAM (E87, E90) LEGEND

Key Explanation Key Explanation
1 Junction box electronics 2 Dynamic Stability Control
3 Steering column switch cluster 4 Roof function centre
5 Control unit for universal charger and hands-free facility (ULF) 6 Snap-in adapter with bluetooth mobile phone
7 Base plate (eject box) 8 Roof-mounted telephone aerial (GSM)
9 Compensator (optional) 10 Bluetooth antenna
11 Loudspeaker 12 MOST components (optional)
13 Audio amplifier 14 BMW radio ""Professional"" (CCC with CID and controller optional)
15 MOST port Cradle on Switch-on signal for mobile phone battery changing electronics
Cradle key Hands-free button F-CAN Chassis controller area network
K-CAN Body controller area network Mic+ Microphone, positive terminal
Mic- Microphone, negative terminal MOST Media-Oriented System Transport
PT-CAN Powertrain controller area network TEL_ON Telephone ON signal for compensator
