E60, E61, E63, E64, E87, E90 - Two-Tuner Radio
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The two-tuner radio is connected by plug-in contacts to the audio board of the Car Communication Computer.
Construction
The two-tuner radio consists of a printed circuit with tuner 1 and tuner 2. Both tuners can be encoded for the entire frequency range anywhere in the world. The printed circuit is secured to an aluminum plate sheet that also acts as the right-hand side panel of the housing.
The illustration shows the example of the audio board on the E60.

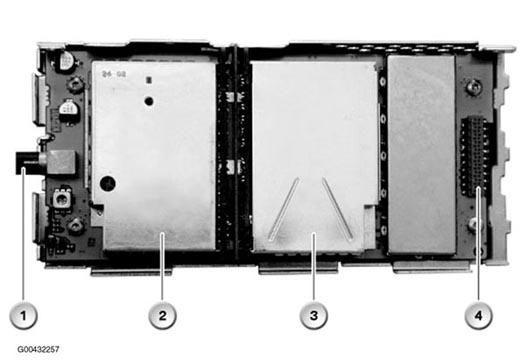

TWO-TUNER RADIO CONSTRUCTION
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Aerial connection | 2 | Tuner 1 (radio reception) |
| 3 | Tuner 2 (reception of additional information from RDS and TMC) | 4 | Plug connector to audio board |
