E60, E61, E63, E64, E87, E90 - Audio Board
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The audio board is fitted on the right-hand side of the Car Communication Computer.
Construction
The audio board is connected to the motherboard and the power board via plug-in contacts. 2 additional plug-in contacts provide a connection to the two-tuner radio and to the CD-ROM drive.

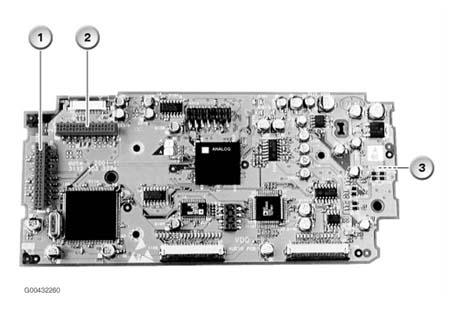

The illustration shows the example of the CCC on the E60.
AUDIO BOARD COMPONENTS
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Plug-in contact for connection to the two-tuner radio | 2 | Plug-in contact for connection to the CD-ROM drive |
| 3 | Plug-in contact for connection to the power board |
