E60, E61, E63, E64, E87, E90 - Car Communication Computer (CCC) system overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

For technical reasons, the system overview is divided up as follows:

  1. > E60, E61, E63, E64
    • CCC inputs/outputs
    • CCC system circuit diagram
  2. >E87, E90
    • CCC inputs/outputs
    • CCC system circuit diagram
  3. >E60, E61, E63, E64, E87, E90
    • Professional navigation system inputs/outputs
    • Voice recognition system inputs/outputs
    • TV function inputs/outputs
    • Arrangement of printed circuits

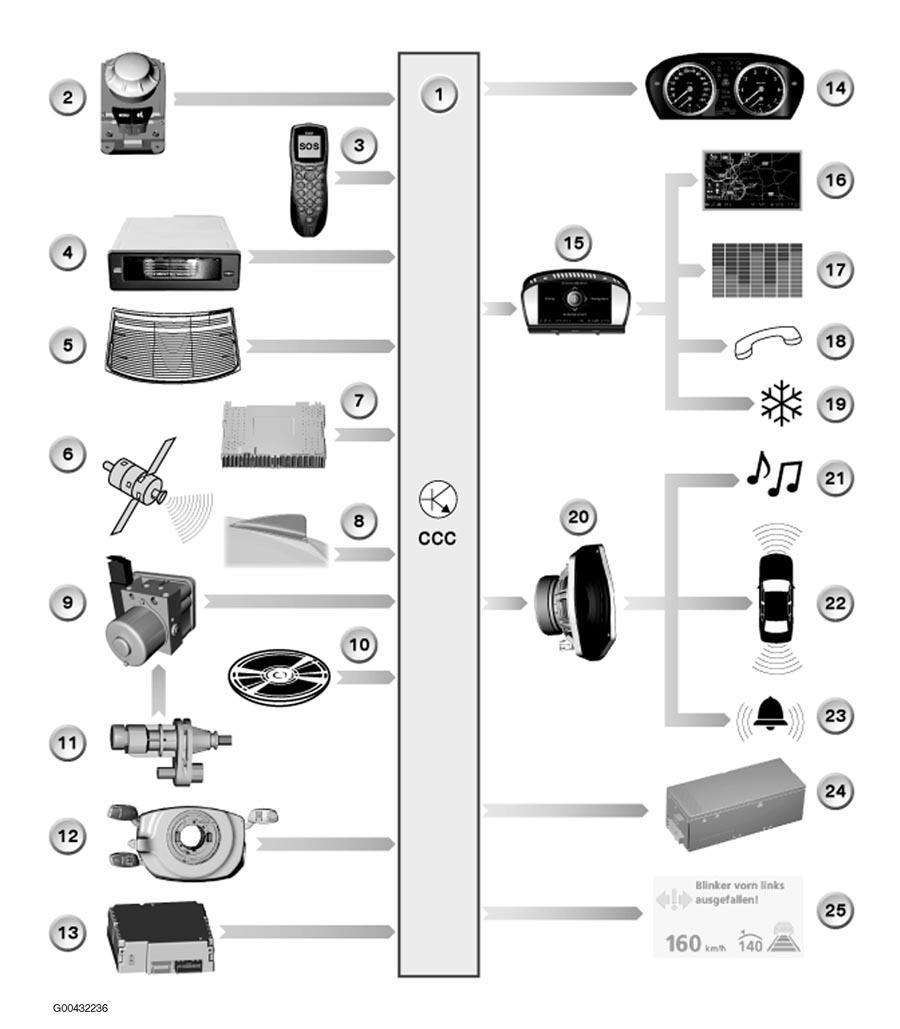

CCC inputs/outputs on E60, E61, E63, E64

The illustration shows the example of the signal input and signal output on the E60.

Fig 1: Identifying CCC Inputs/Outputs On E60, E61, E63, E64
G00432236Courtesy of BMW OF NORTH AMERICA, INC.
CCC INPUTS/OUTPUTS ON E60, E61, E63, E64

Key Explanation Key Explanation
1 Car Communication Computer (CCC) 2 Controller in the centre console
3 Telephone (option 638 "Professional car phone") 4 CD changer (option 672 "6-disc CD changer in glove box")
5 Aerials (in the rear window) 6 GPS satellites
7 Satellite Digital Audio Radio System (only US version) 8 GPS aerial
9 Dynamic Stability Control (DSC) 10 DVD for the navigation system
11 Wheel speed sensor 12 Steering column switch cluster (SZL)
13 Video module 5 (option 601 "TV and video function") 14 Instrument cluster (for the Check Control messages)
15 Central Information Display (CID) 16 Navigation
17 Entertainment 18 Communication
19 Climate (for control of the integrated automatic heating/air-conditioning system) 20 Loudspeakers for audio output
21 Audio operation 22 Park distance control (PDC, option 508 "Park Distance Control")
23 Audible notes (jingles) e.g. output of gongs 24 Top-HiFi amplifier (option 677 "Professional HiFi System with Logic 7 signal processing")
25 Head-up display (HUD, option 610 "Head-up display")

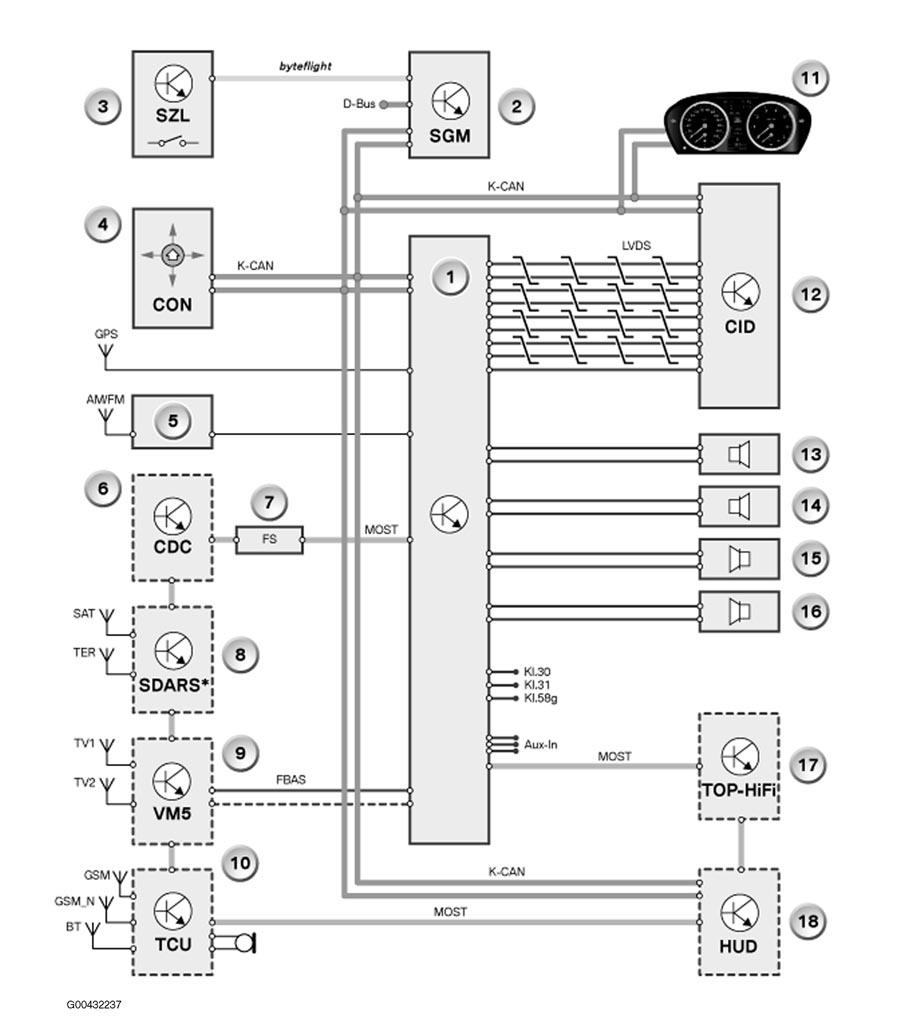

CCC system circuit diagram on E60, E61, E63, E64

The illustration shows the example of the system circuit diagram on the E60.

Fig 2: Identifying CCC System Circuit Diagram On E60
G00432237Courtesy of BMW OF NORTH AMERICA, INC.
CCC SYSTEM CIRCUIT DIAGRAM ON E60

Key Explanation Key Explanation
1 Car Communication Computer (CCC) 2 Safety and gateway module (SGM)
3 Steering column switch cluster (SZL) 4 Controller in the centre console
5 Aerial diversity 6 CD changer (option 672 "6-disc CD changer in glove box")
7 Flash connector 8 Satellite Digital Audio Radio Service (SDARS, US version only)
9 Video module 5 (option 601 "TV and video function") 10 Telematic control unit (TCU, option 638 "Car phone Professional")
11 Instrument cluster for Check-Control messages 12 Central Information Display (CID)
13 Front left loudspeaker (only if no Top-HiFi amplifier is fitted) 14 Rear left loudspeaker (only if no Top-HiFi amplifier is fitted)
15 Front right loudspeaker (only if no Top-HiFi amplifier is fitted) 16 Rear right loudspeaker (only if no Top-HiFi amplifier is fitted)
17 Top-HiFi amplifier (option 677 "Professional HiFi System with Logic 7 signal processing") 18 Head-up display (HUD, option 610 "Head-up display")
AM/FM Radio aerial AUX-In Additional audio input, not assigned
BT Bluetooth aerial D-Bus Diagnosis bus
FBAS Colour image blanking synchronisation signal GPS Global Positioning System
GSM Telephone aerial GSM_N Emergency aerial
K-CAN Body CAN Kl. 30 Terminal 30, power supply
Kl. 31 Terminal 31, earth Kl. 58g Instrument lighting
LVDS Low Voltage Differential Signalling MOST Media-Oriented System Transport
SAT Aerial for satellite reception TER Aerial for terrestrial reception
TV1 TV aerial 1 TV2 TV aerial 2

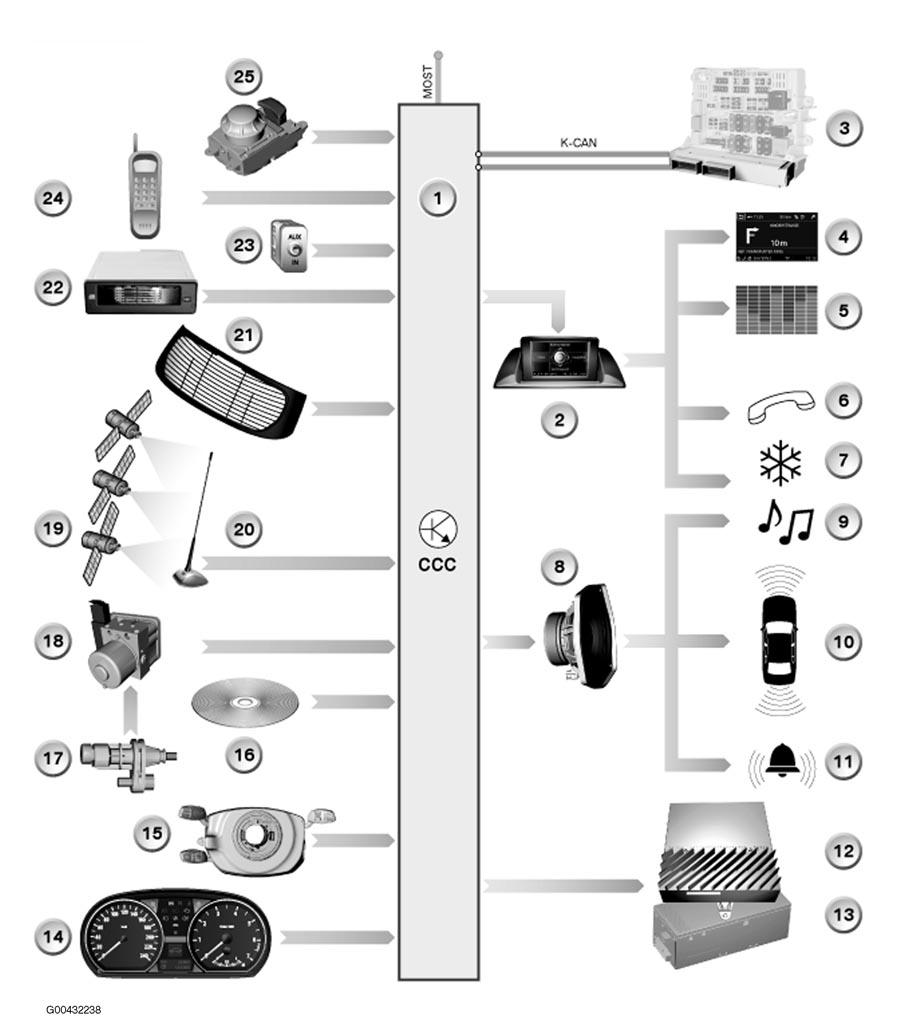

CCC Inputs/Outputs On E87, E90

The illustration shows the example of the signal input and signal output on the E87.

Fig 3: Identifying CCC Inputs/Outputs On E87, E90
G00432238Courtesy of BMW OF NORTH AMERICA, INC.
CCC INPUTS/OUTPUTS ON E87, E90

Key Explanation Key Explanation
1 Car Communication Computer (CCC) 2 Central Information Display (CID)
3 Junction box electronics (JBE) 4 Navigation display
5 Entertainment display 6 Telephone menu display
7 Air conditioning display 8 Audio operation
9 Audio signals (music, language, navigation messages) 10 Park Distance Control (PDC)
11 Audible notes (jingles) e.g. output of gongs 12 Amplifier for HiFi system
13 Amplifier for Top-HiFi system 14 Instrument cluster (for the Check Control messages)
15 Steering column switch cluster 16 DVD for the navigation system
17 Wheel speed sensor 18 Dynamic Stability Control (DSC)
19 GPS data from satellites 20 Roof-mounted aerial
21 Rear window aerial 22 CD changer - optional
23 AUX-In connection 24 Telephone - optional
25 Controller

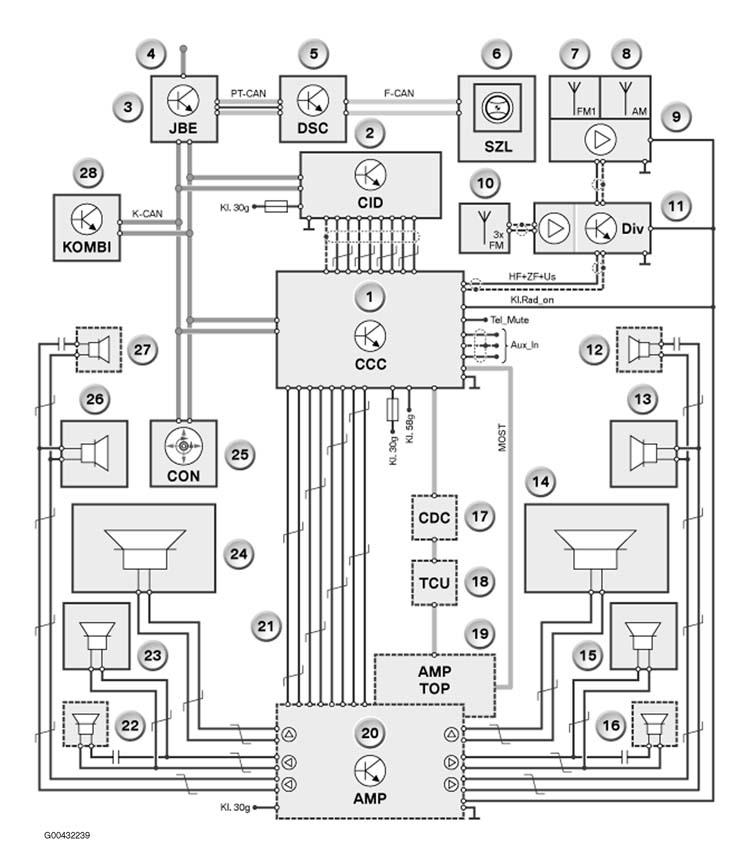

CCC system circuit diagram for E87, E90

The illustration shows the example of the system circuit diagram on the E87.

Fig 4: Identifying CCC System Circuit Diagram For E87, E90
G00432239Courtesy of BMW OF NORTH AMERICA, INC.
CCC SYSTEM CIRCUIT DIAGRAM FOR E87, E90

Key Explanation Key Explanation
1 Car Communication Computer (CCC) 2 Central Information Display (CID)
3 Junction box electronics (JBE) 4 Diagnosis wire
5 Dynamic Stability Control (DSC) 6 Steering column switch cluster (SZL)
7 Roof-mounted aerial for FM 8 Roof-mounted aerial for AM
9 Aerial amplifier for roof-mounted aerial 10 Rear window aerial
11 Aerial diversity with amplifier 12 Front right treble loudspeaker - optional
13 Front right mid-range loudspeaker 14 Central bass, right
15 Rear right mid-range loudspeaker 16 Rear right treble loudspeaker - optional
17 CD changer - optional 18 Telephone - optional
19 TOP-HiFi amplifier - optional 20 HiFi amplifier - optional
21 Audio signal cable, only with stereo or HiFi system 22 Rear left treble loudspeaker - optional
23 Rear left mid-range loudspeaker 24 Central bass, left
25 Controller (CON) 26 Front right mid-range loudspeaker
27 Front left treble loudspeaker - optional 28 Instrument cluster
AM/FM Radio aerial AUX-In Auxiliary audio input

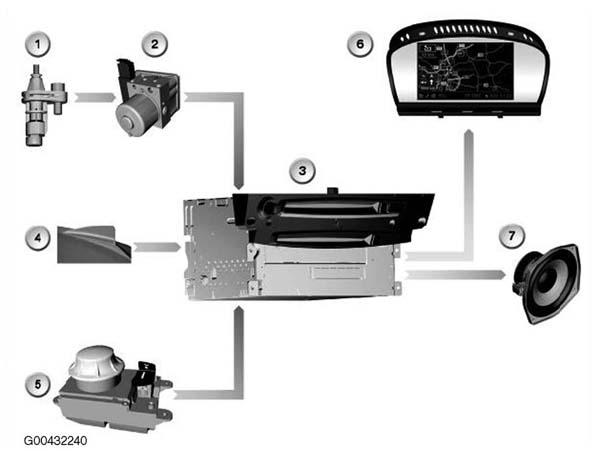

DVD Navigation System Professional Inputs/Outputs

The illustration shows the example of the signal input and signal output on the E60.

Fig 5: Identifying DVD Navigation System Professional Inputs/Outputs
G00432240Courtesy of BMW OF NORTH AMERICA, INC.
DVD NAVIGATION SYSTEM PROFESSIONAL INPUTS/OUTPUTS

Key Explanation Key Explanation
1 Wheel speed sensor 2 DSC control unit
3 Car Communication Computer (CCC) 4 Telephone and GPS aerial
5 Controller in the centre console 6 Central Information Display (CID)
7 Loudspeakers for audio output

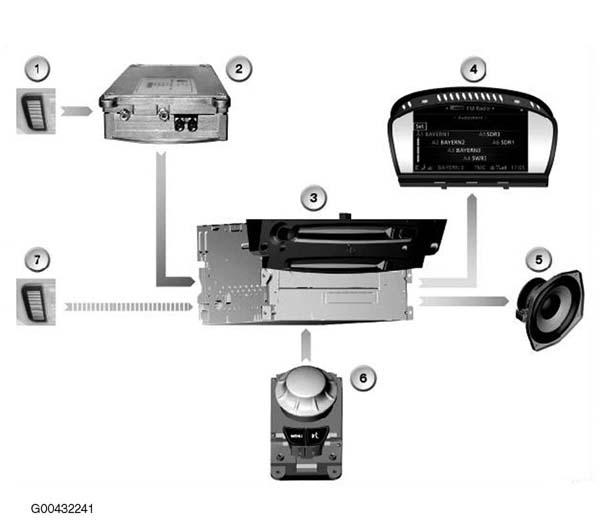

Voice Recognition System Inputs/Outputs

The illustration shows the example of the signal input and signal output on the E60.

Fig 6: Identifying Voice Recognition System Inputs/Outputs
G00432241Courtesy of BMW OF NORTH AMERICA, INC.
VOICE RECOGNITION SYSTEM INPUTS/OUTPUTS

Key Explanation Key Explanation
1 Microphone, left, for hands-free mode 2 Telematic control unit (TCU)
3 Car Communication Computer (CCC) 4 Central Information Display (CID)
5 Loudspeakers for audio output 6 Controller
7 Microphone, right, for voice commands

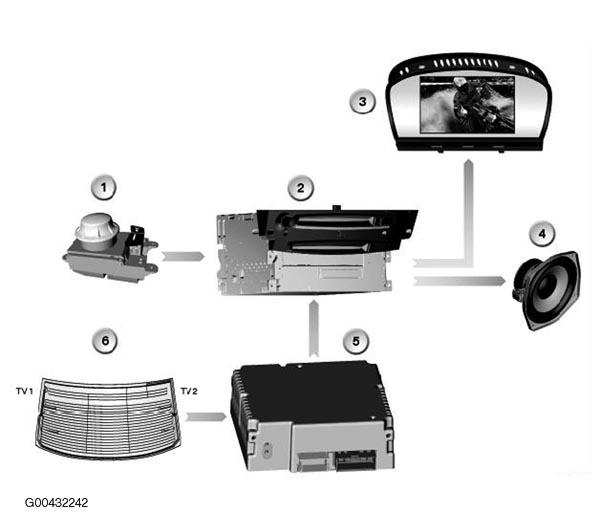

TV Function Inputs/Outputs

The TV function is currently only fitted for the E60, E61, E63 and E64. A TV function is not possible on the E87.

The illustration shows the example of the signal input and signal output on the E60.

Fig 7: Identifying TV Function Inputs/Outputs
G00432242Courtesy of BMW OF NORTH AMERICA, INC.
TV FUNCTION INPUTS/OUTPUTS

Key Explanation Key Explanation
1 Controller in the centre console 2 Car Communication Computer (CCC)
3 Central Information Display (CID) 4 Loudspeakers for audio output
5 Video module 5 (option 601 "TV and video function") 6 TV aerials TV1 and TV2 with aerial diversity and aerial amplifier

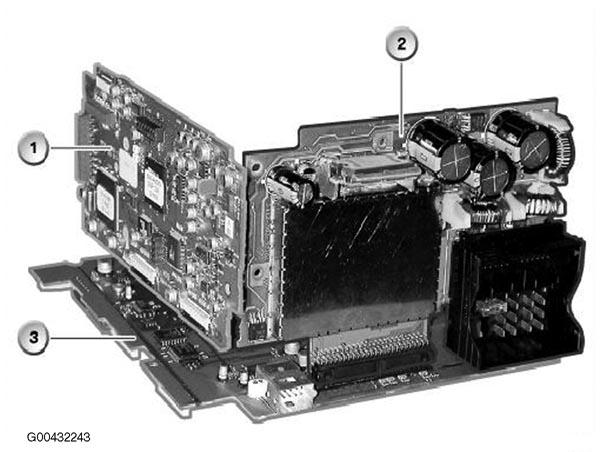

Arrangement Of Printed Circuits

The illustration shows the example of a board on the E60.

Fig 8: Identifying Arrangement Of Printed Circuits
G00432243Courtesy of BMW OF NORTH AMERICA, INC.
ARRANGEMENT OF PRINTED CIRCUITS

Key Explanation Key Explanation
1 Audio board 2 Power board
3 Motherboard
