E60, E61, E63, E64, E87, E90: Bluetooth Antenna
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 645Ci, 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
- E87, E90: In an enclosed housing behind the lower trim of the steering column
- E60, E61: In the center armrest, under the base plate for mobile phone
- E63, E64: Under the rear shelf

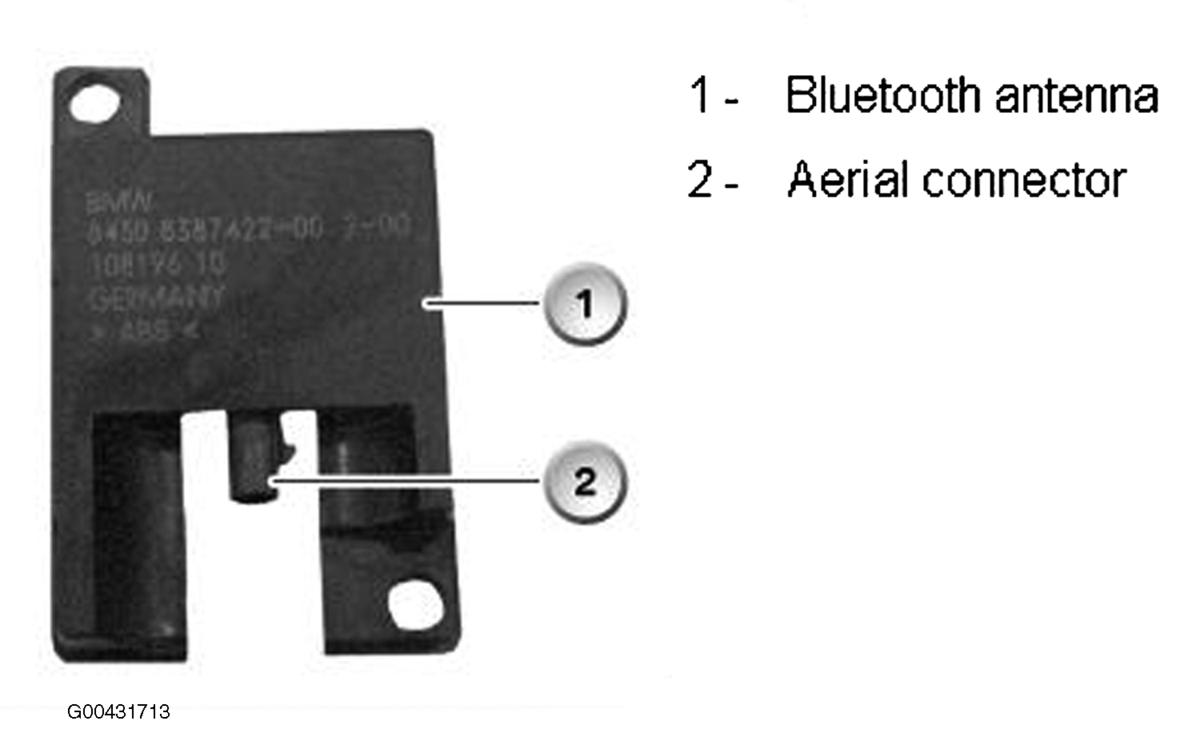

Construction
How it works
The bluetooth aerial is the transmit/receive aerial of the TCU control unit. The bluetooth antenna is used for communicating with bluetooth equipment (e.g. mobile phone). The bluetooth antenna is designed for a frequency of 2.45 GHz.
