Radio and CD changer: Notes

The following radios are available for the E85:

All radios are new generation radios (NG radios). The radios feature a K-bus connection via which they communicate with other control units.

The AF input (audio signals) of the CD changer was increased from 0.5 V to 2.0 V in order to increase the signal-to-noise ratio. The new generation radios detect whether they communicate with a 0.5 V CD changer (old) or a 2.0 V CD changer (new) and switch over the input accordingly.

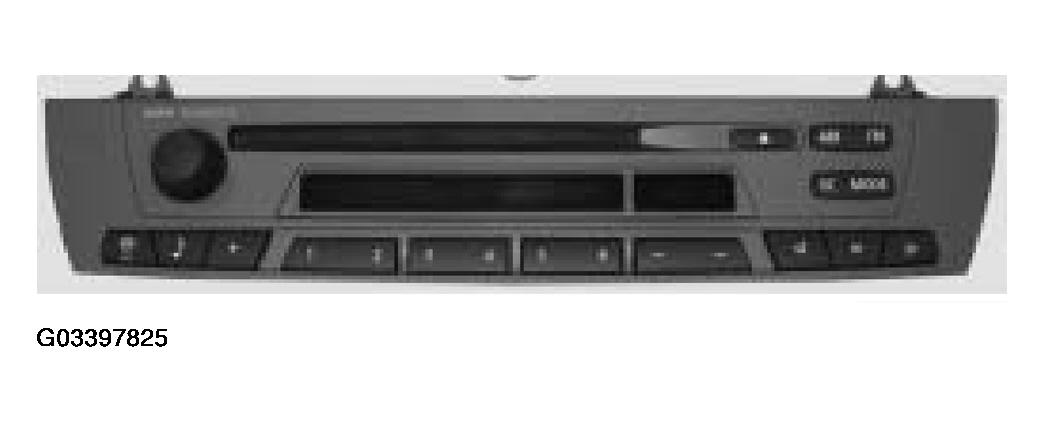

Fig 1: Identifying Radio And CD Changer
G03397825Courtesy of BMW OF NORTH AMERICA, INC.

A 6-CD changer is additionally available for the E85.

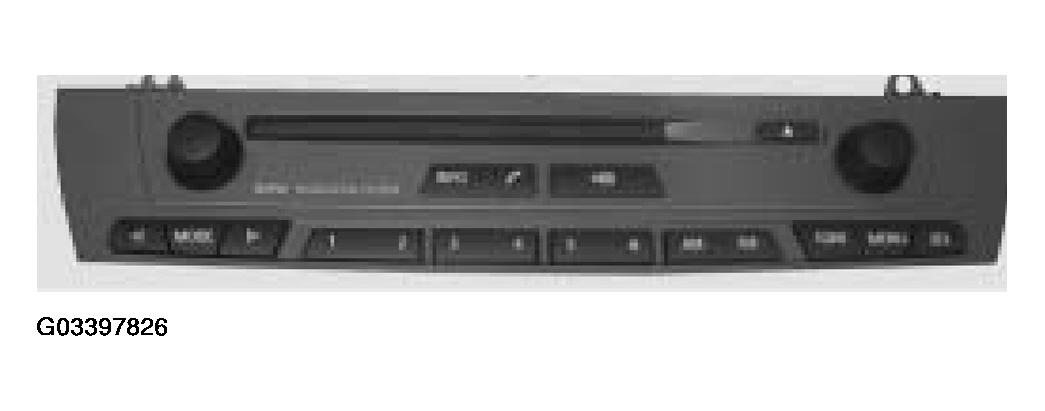

Fig 2: Identifying 6-CD Changer Additionally
G03397826Courtesy of BMW OF NORTH AMERICA, INC.

A radio with a cassette drive is no longer available.
