Central Information Display

The central information display is the display unit for the High navigation system. The display is designed as a 6.5" advanced TFT display for presenting the operating interface and maps.

To optimize the legibility, the display can be precision adjusted by means of a switch.

The central information display is located in the center of the instrument panel above the ventilation outlet.

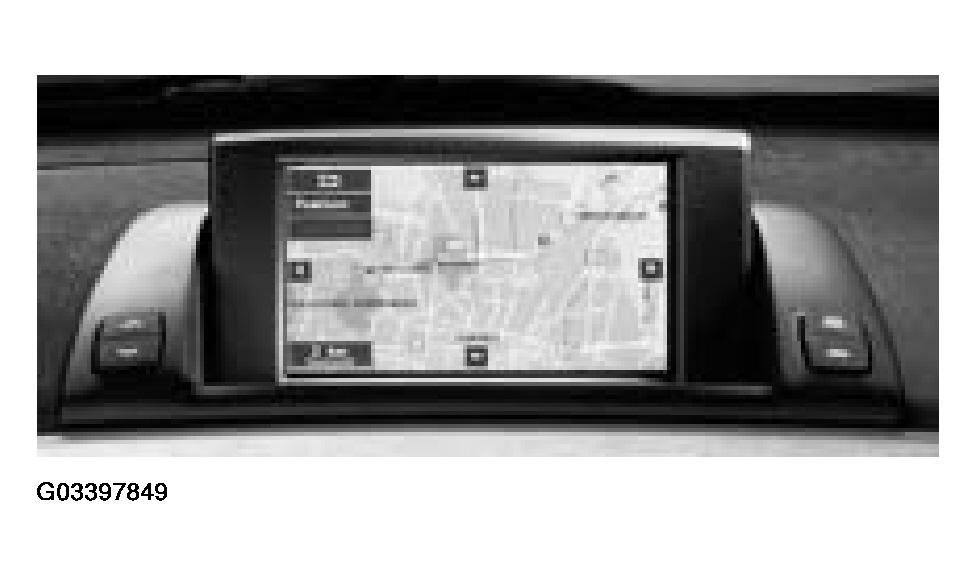

Fig 1: Identifying Central Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

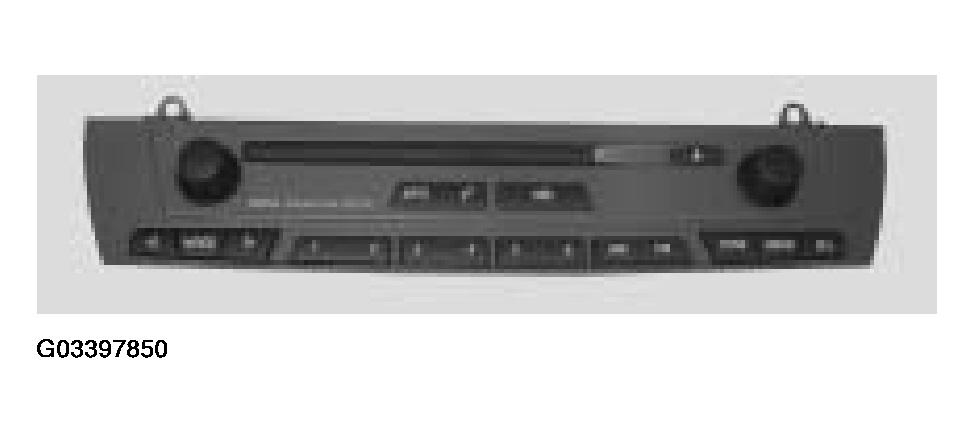

Fig 2: Identifying Stereo Panel

Courtesy of BMW OF NORTH AMERICA, INC.
