Mid-Range Speakers

The mid-range speakers have a diameter of 100 mm and a paper cone. The maximum load capacity is 25 W. The mid-range speaker covers a frequency range from 100 Hz to 15,000 Hz. The front and rear mid-range speakers are of identical design.

The front mid-range speakers are fitted in the doors. The rear mid-range speakers are mounted behind the seats. The front mid-range speakers emit sound transversely with respect to forward direction. The mid-range speakers utilize the resonance volume of the doors. The output of the rear mid-range speakers is aligned in forward direction. The resonance volume is approx. 2 l.

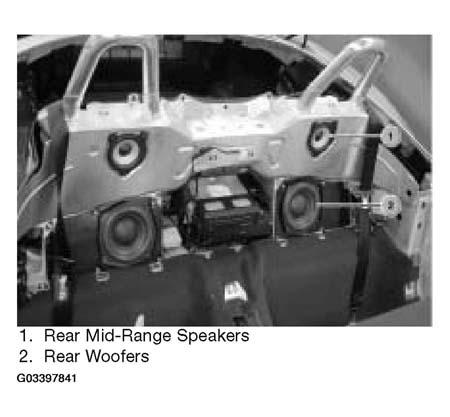

Fig 1: Identifying Mid-Range Speakers

Courtesy of BMW OF NORTH AMERICA, INC.

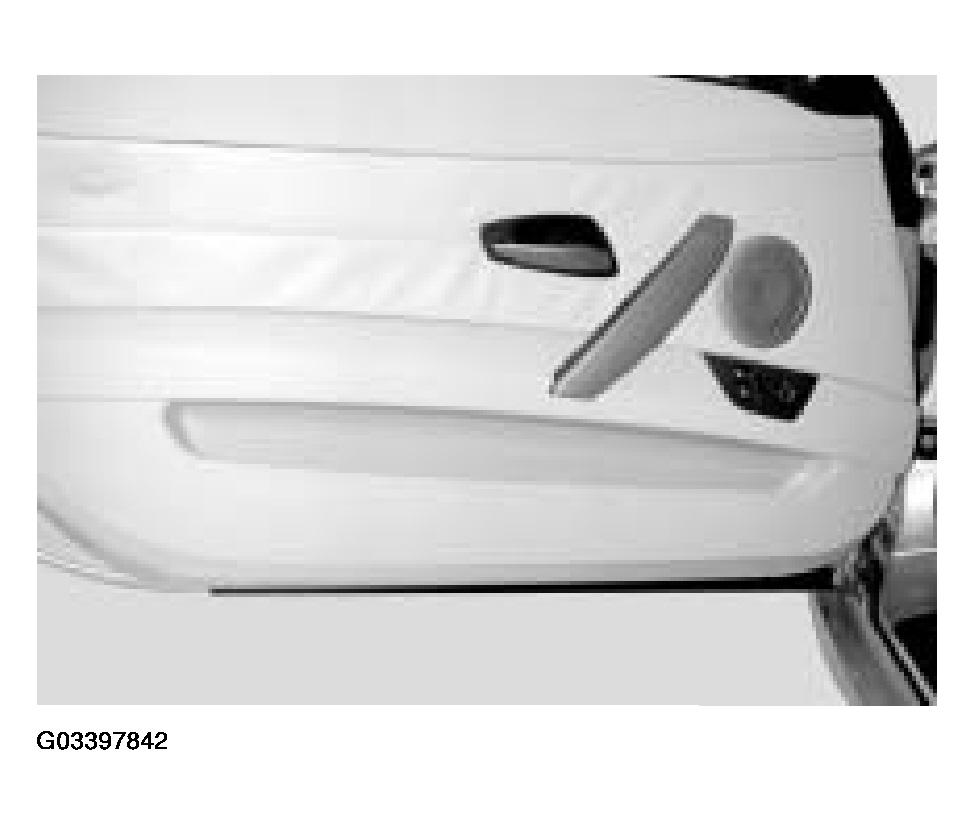

Fig 2: Identifying Door Mounting Mid Range Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

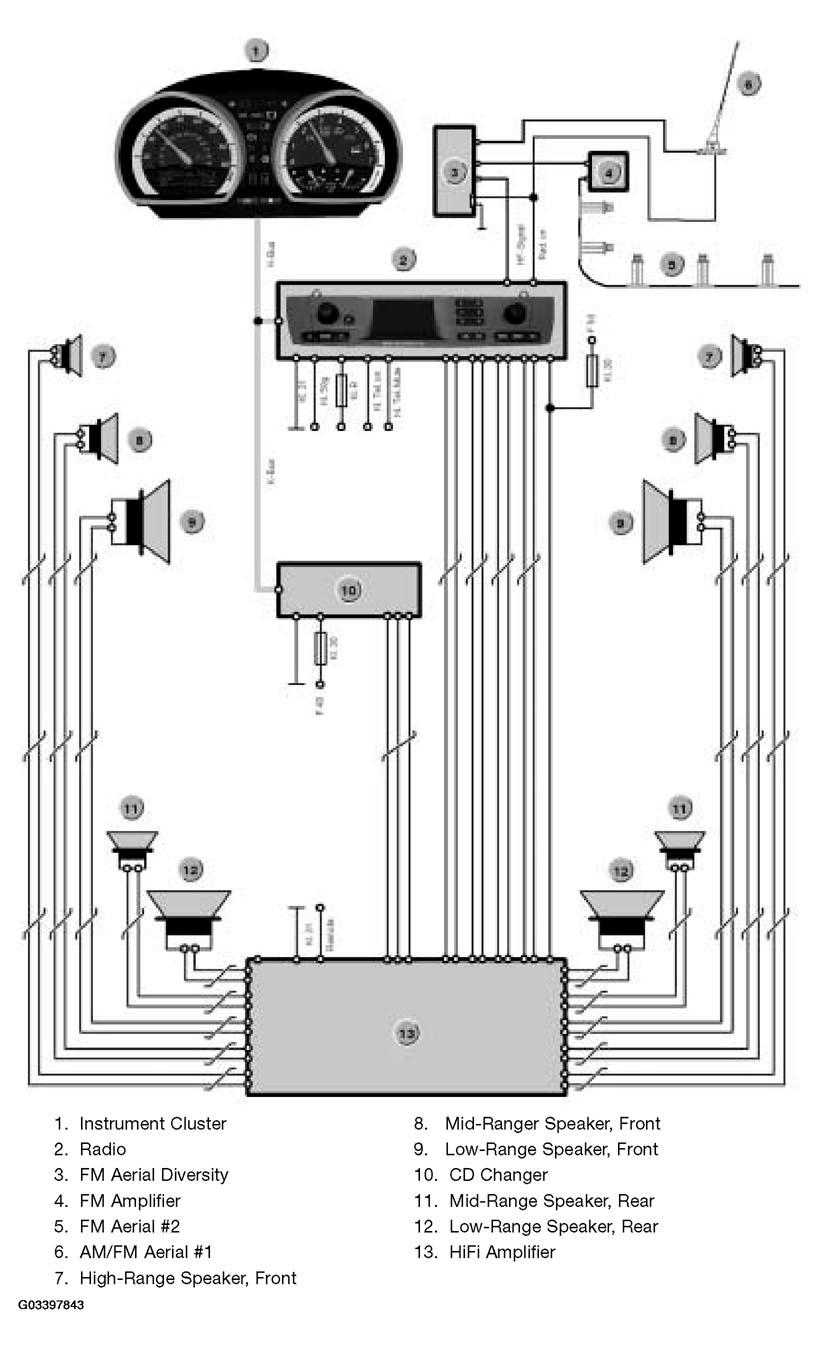

Fig 3: Identifying Entertainment System Components

Courtesy of BMW OF NORTH AMERICA, INC.
