Low-Range Speakers (Woofers)

The front woofers (low-range speakers) are mounted at the bottom in the A-pillars on the left and right. The woofers are arranged transversely with respect to forward direction.

The resonance volume is approx. 10 l and utilizes a part of the sill area.

Rear woofers are additionally installed in the partition behind the seats.

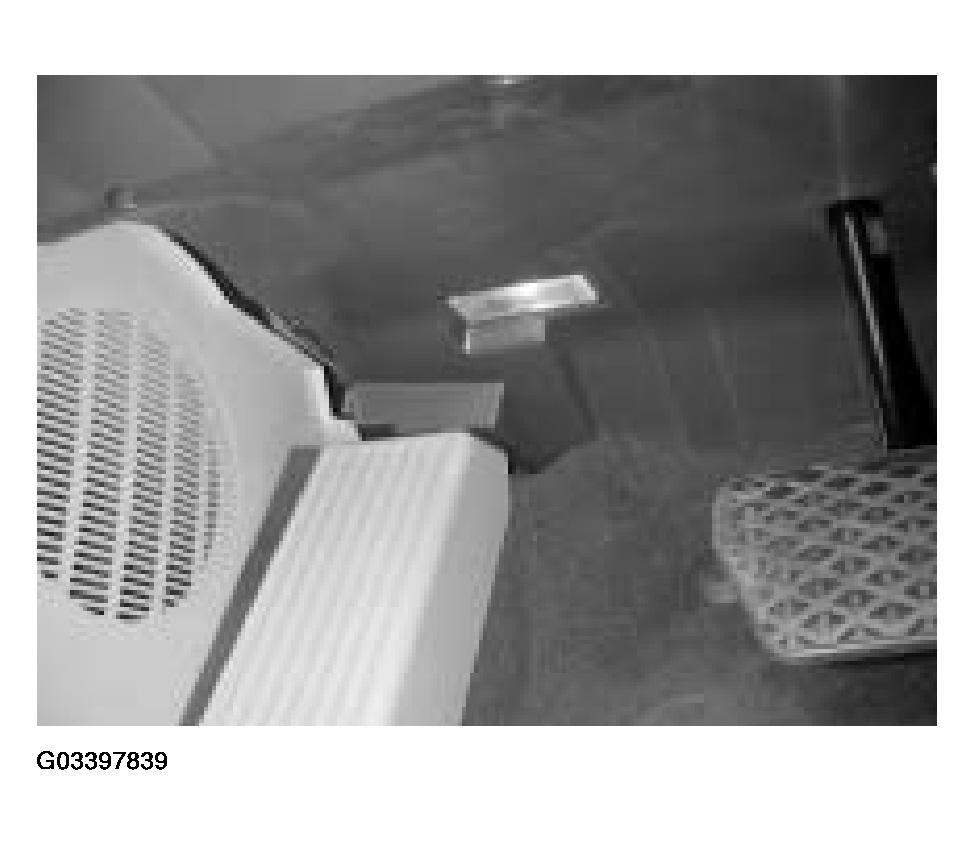

Fig 1: Identifying Low-Range Speakers (Woofers) (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Low-Range Speakers (Woofers) (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
