Carver Woofers (Low-Range Speakers), Rear

The Carver woofers have a diameter of 160 mm and a paper cone in Carver technology. The maximum load capacity is 100 W. The Carver woofers cover a frequency range from 30 Hz to 150 Hz.

The rear Carver woofers are accommodated in the partition behind the seats. The resonance volume is approx. 10 l.

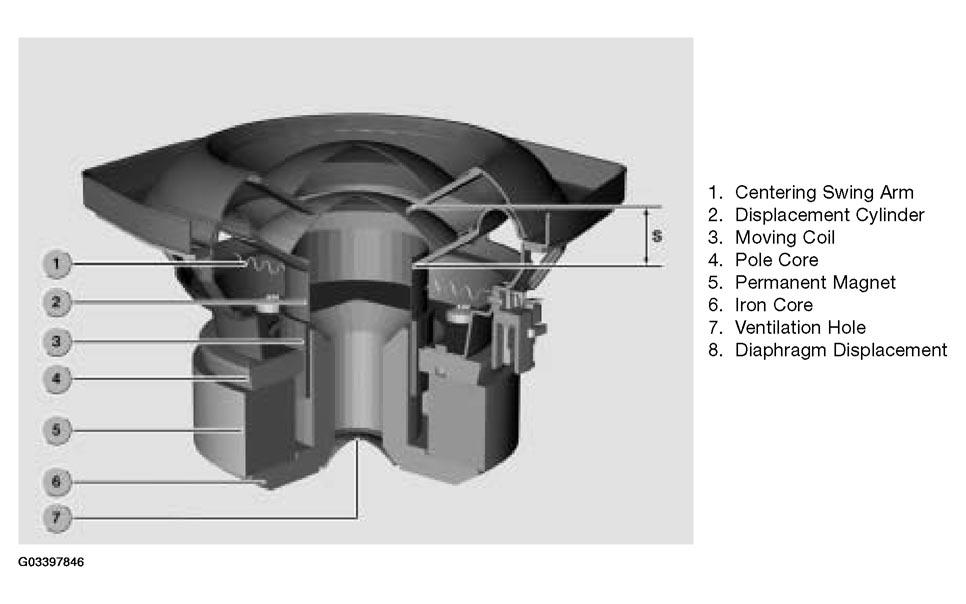

Fig 1: Side Cut View Of Woofer
G03397846Courtesy of BMW OF NORTH AMERICA, INC.
