51 22 180 Removing And Installing/Replacing Cover On Outside Handle, Left Or Right

Lever out trim (1) and frame (2).

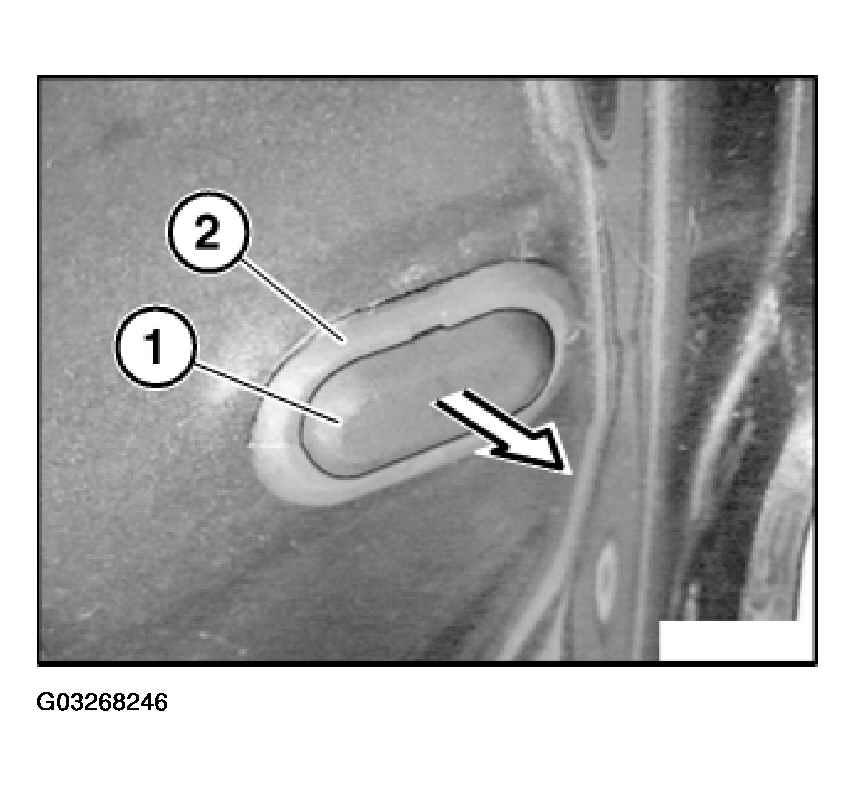

Fig 1: Removing Trim And Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After releasing screw, you must reinstall frame (2) (damage to paint).

Installation:

Release screw (1).

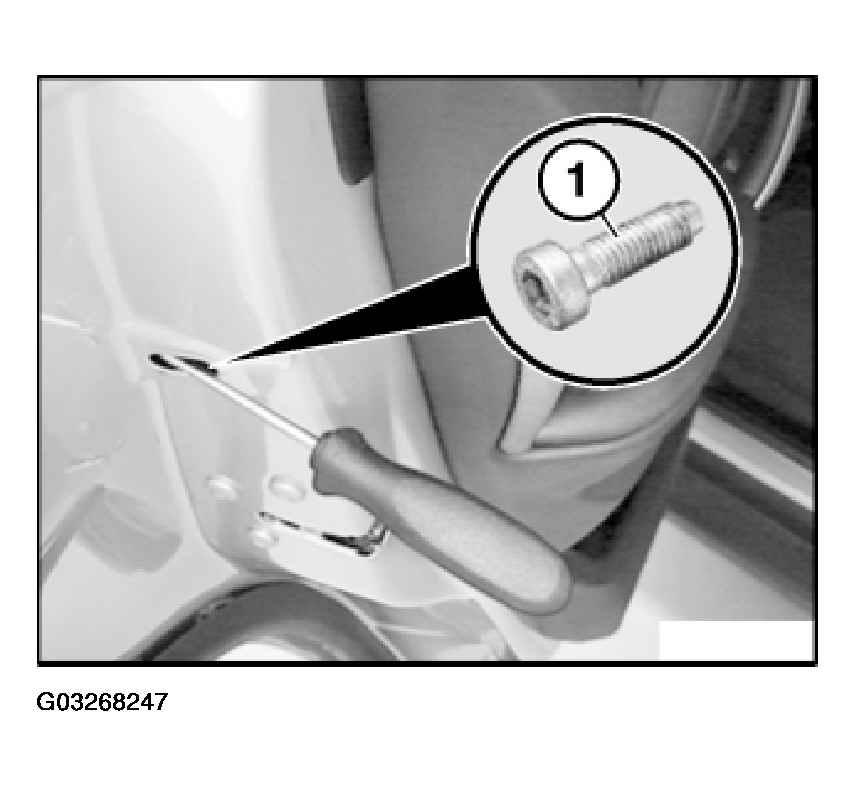

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Removing cover (1) on outside handle:

Pull cover (1) approx. 1... 2 mm towards rear.
Take off cover (1).

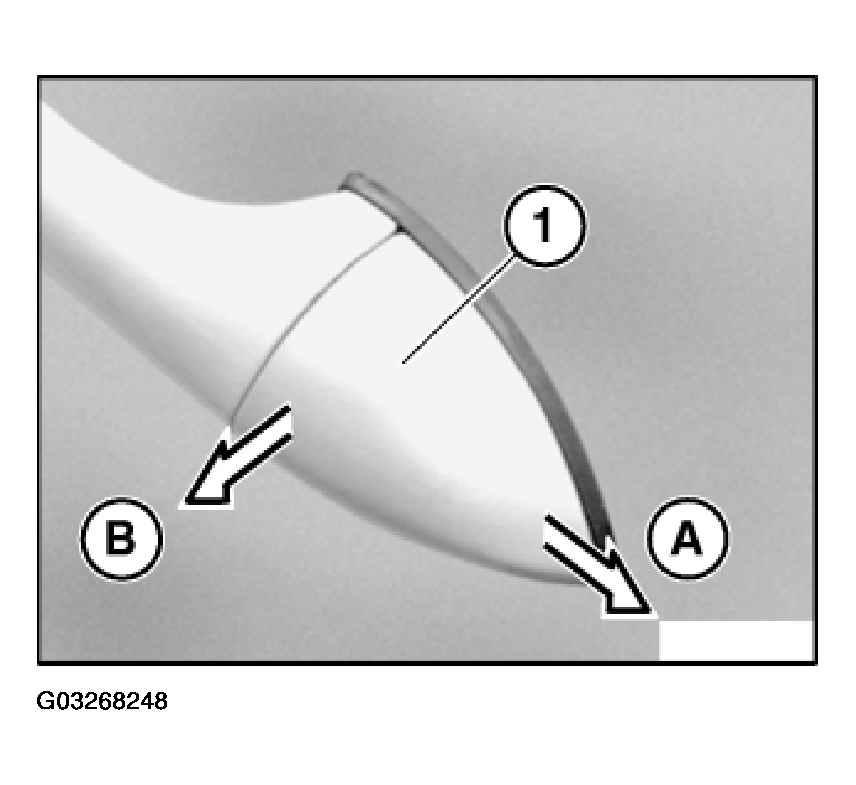

Fig 3: Removing Cover On Outside Handle
Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (1) and detach cover (2) from filler element (3).

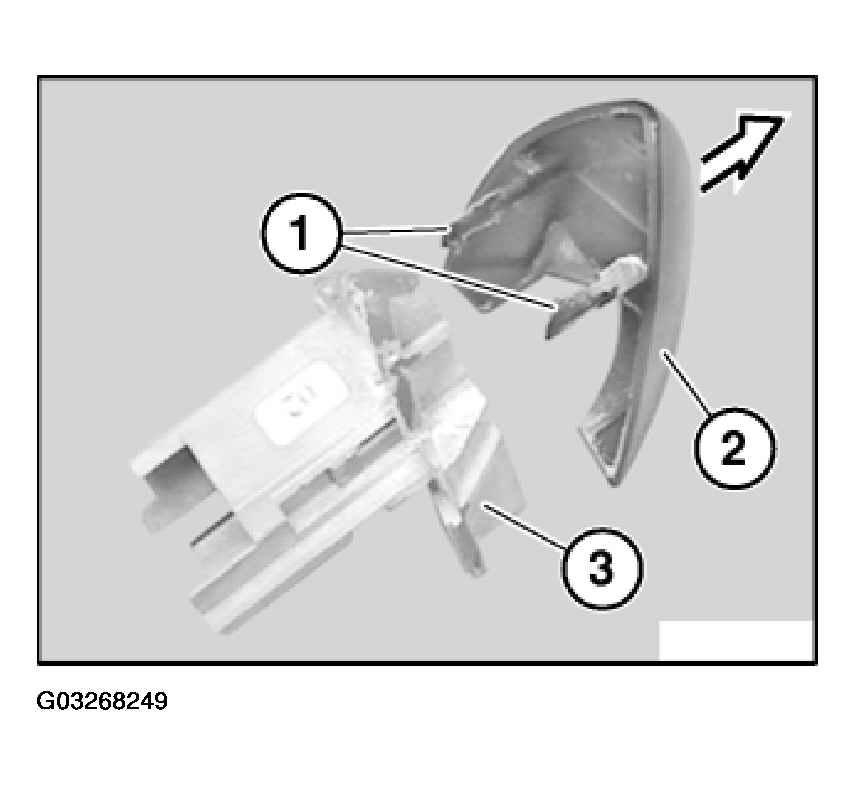

Fig 4: Detaching Cover From Filler Element

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on cover (2) must not be damaged.
