Model with hydraulic drive belt and tension jack:

Remove the dust cab. Push back belt tensioner at bolt connection of guide pulley and remove drive belt.

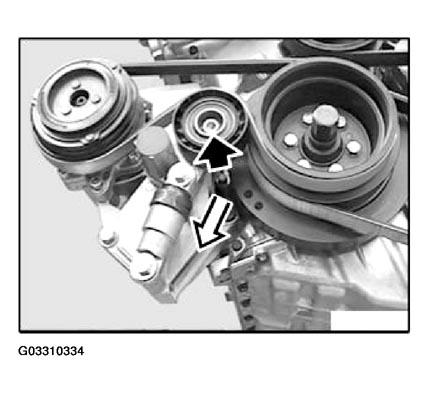

Fig 1: Removing Drive Belt
G03310334Courtesy of BMW OF NORTH AMERICA, INC.
