11 13 000 Removing and installing, sealing or replacing oil sump (M52TU / M54 / M56)

Special tools required:

NOTE: To remove the oil sump, you must lower the front axle support. There is no need to perform a front axle alignment check.

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 208 and fit.

Fig 1: Installing Special Tool On Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 00 0 200 to front suspension eye on engine.

NOTE: The supports (1) of special tool 00 0 208 must rest on the bolt connection of both side walls.

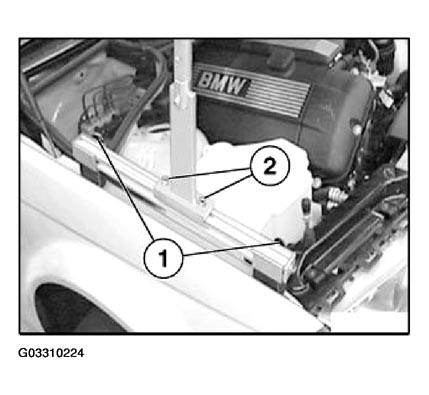

Tighten the screws (1 and 2).

Fig 2: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Raise engine with special tool 00 0 200 approx. 5 mm.

Fig 3: Raising Engine With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove suction filter housing.

Remove engine splash guard.

On vehicles with automatic transmission:

Disconnect oil lines from automatic transmission and from oil pan.

Release guide tube for dipstick.

Fig 4: Removing Oil Dipstick Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: M52TU and M54 only.

Detach return hose from cyclone oil separator on oil dipstick guide tube.

Remove oil dipstick guide tube upwards.

Installation:

Replace O-ring.

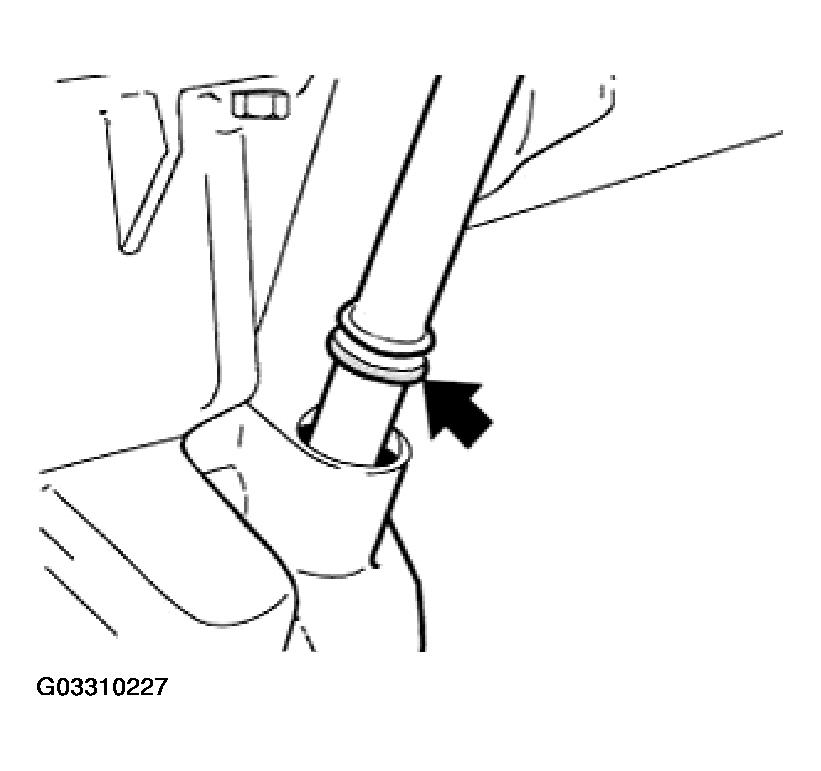

Fig 5: Identifying O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front end reinforcement.

Detach steering spindle from steering gear.

Remove vane pump for power steering unit (lines remain connected).

Disconnect plug connection to oil level sensor.

Loosen top and unfasten bottom of left and right engine mounts.

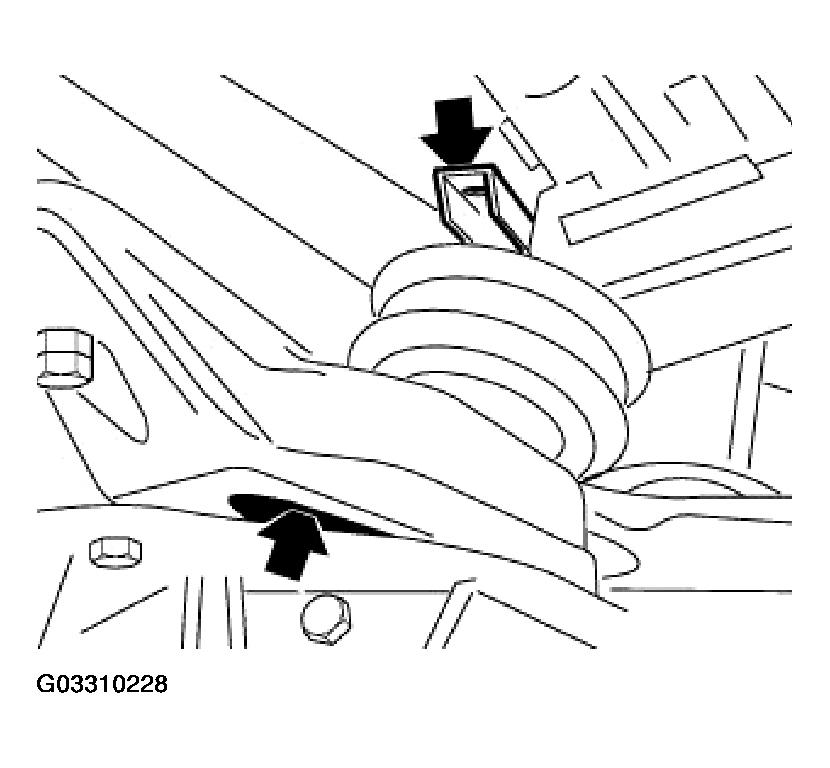

Fig 6: View Of Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.
