11 12 527 Remachining a valve seat (M52 / S52 / M52TU / M54 / M56)

Special tools required:

00 3 520
00 3 580

(cylinder head dismantled)

Machine valve seat surface with special tool 00 3 520 or with special tool 00 3 580 in accordance with manufacturer's instructions.

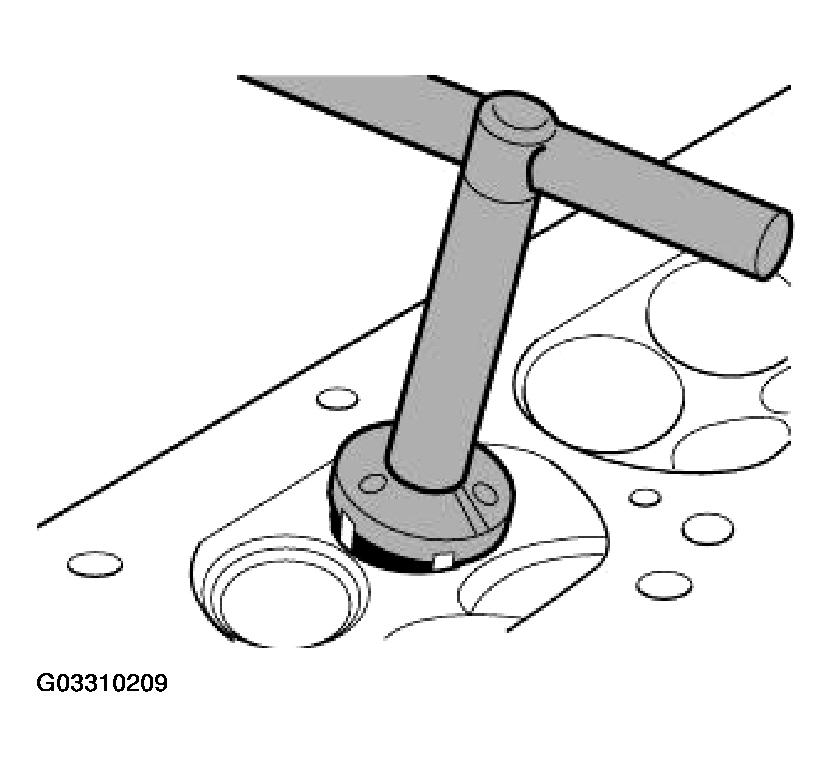

Fig 1: Machining Valve Seat Surface

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After machining the valve seat surface, remachine the outside and inside diameters with a correction milling tool to the prespecified diameter to produce valve seat width (5).

Valve-seat angle
Correction angle, outside
Correction angle, inside
Outside diameter seat face
Valve-seat width
Specified values (1 to 5).

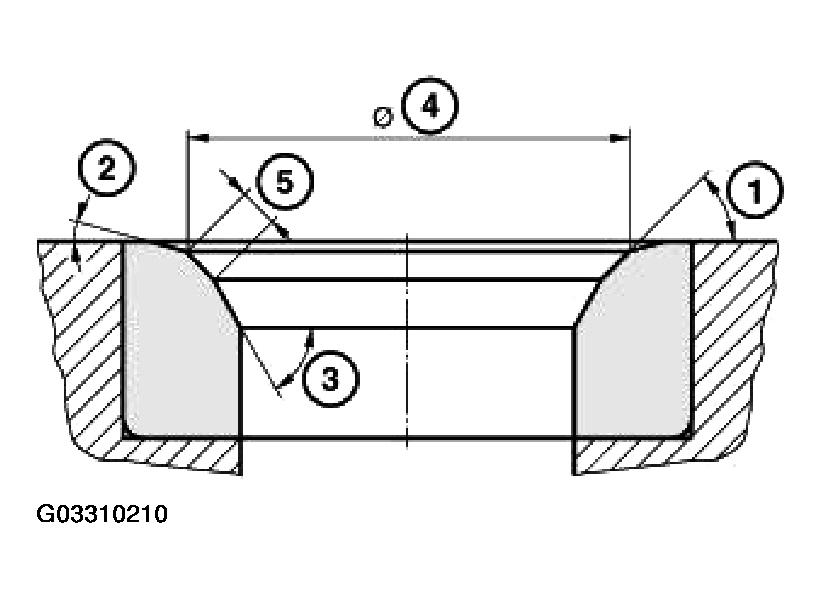

Fig 2: Identifying Valve Seat Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.
