12 1 300 Adapter set for 134-pin module plug

Minimum set: Measuring and testing equipment

In conjunction with: 61 1 459

Note: For diagnosis and troubleshooting on DME and transmission control - from model year 98

Engine: M54, M56, M62, M73, N40, N42, N46, N62, N73

Storage location: N 201, N 202, N 203, N 204

SI number: 2 04 97(248)

Order number: 12 1 300

Adapter set for 134-pin module plug

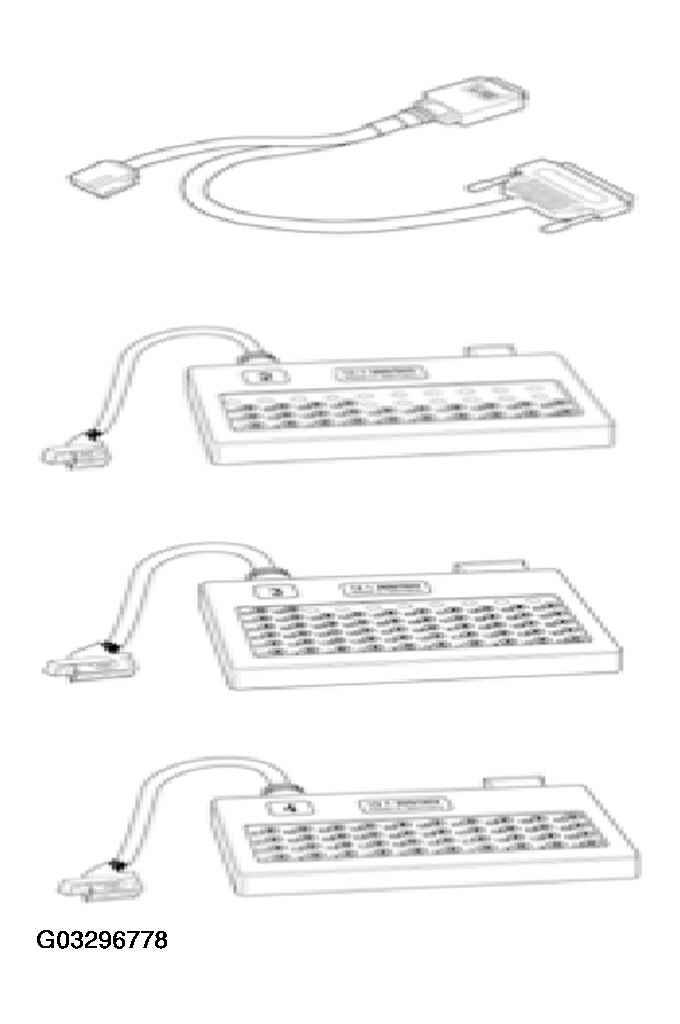

Fig 1: Identifying Adapter Set For 134-Pin Module Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

12 1 301 Adapter lead 9-pin

12 1 302 Measurement module 24-pin

12 1 303 Measurement module 40-pin

12 1 304 Measurement module 52-pin

Note: Supplied from 08/2004 in conjunction with 12 1 305 (zero-coded cover cap for new SGM control unit in E6x)
