Model with mechanical drive belt and tension jack:

Press back drive belt tensioner at hexagon head or Torx socket and remove drive belt.

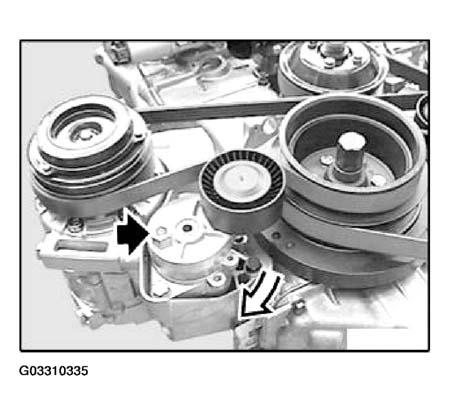

Fig 1: Removing Drive Belt
G03310335Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Drive belt must be replaced if fouled with hydraulic fluid.

Installation:

Check drive belt for coolant and oil residues, replace if necessary.

Install drive belt, make sure it is correctly positioned on belt pulleys.
