51 43 230 Removing And Installing/Replacing Trim On C-Pillar At Bottom Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Necessary Preliminary Tasks:

Remove rear entrance cover strip. Refer to 51 47 030 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, REAR (INSIDE) LEFT OR RIGHT .
Remove rear trim (C-pillar). Refer to 51 43 255 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .

Version Without Electric Rear Seat Adjustment Only:

Remove rear seat back. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .

Version With Electric Rear Seat Adjustment Only:

Remove supplementary trim on C-pillar at bottom. Refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .

Partially detach mucket (1).

Release screw (2).

Detach side trim (3) in direction of arrow from retainers (4).

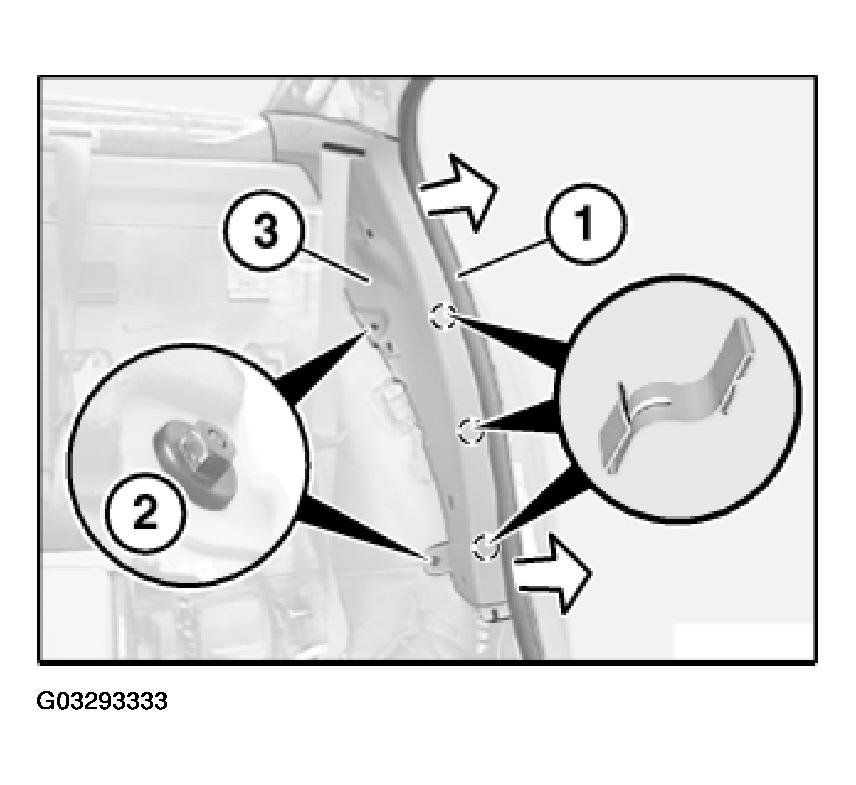

Fig 1: Locating Side Trim Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unclipping side trim (1):

Carefully insert special tool 00 9 317 between decorative strip (2) and side trim (1)
Carefully press special tool to middle.
Carefully pull off side trim (1) towards front.
If necessary, disconnect plug connection for C-pillar trim.

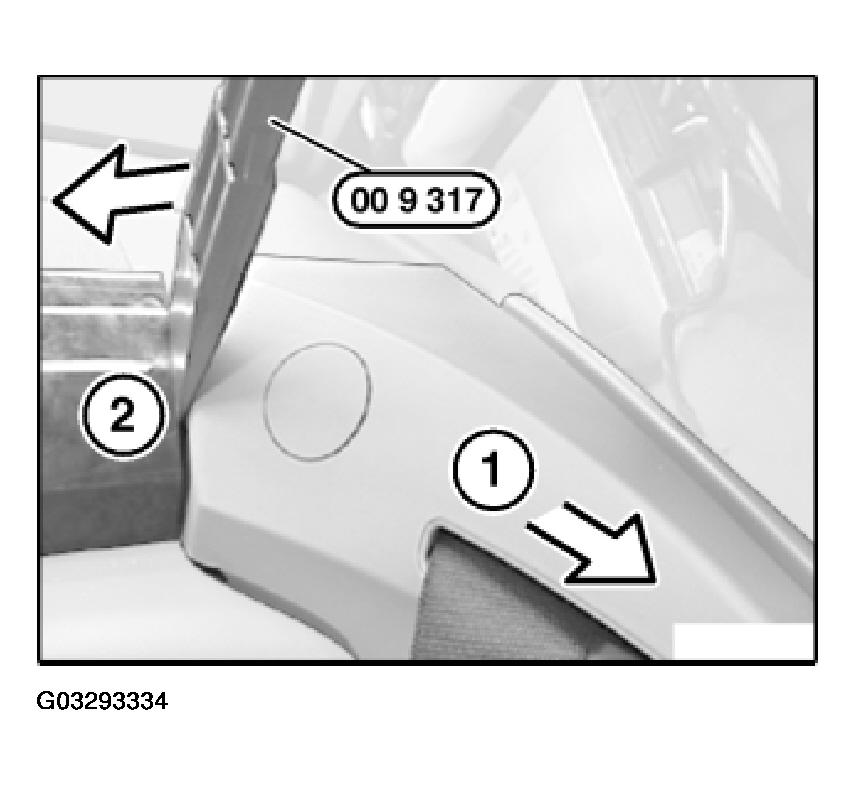

Fig 2: Removing Side Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in pin (1) of side trim under oddments tray (2).

Make sure catch (3) is correctly engaged on decorative strip (4).

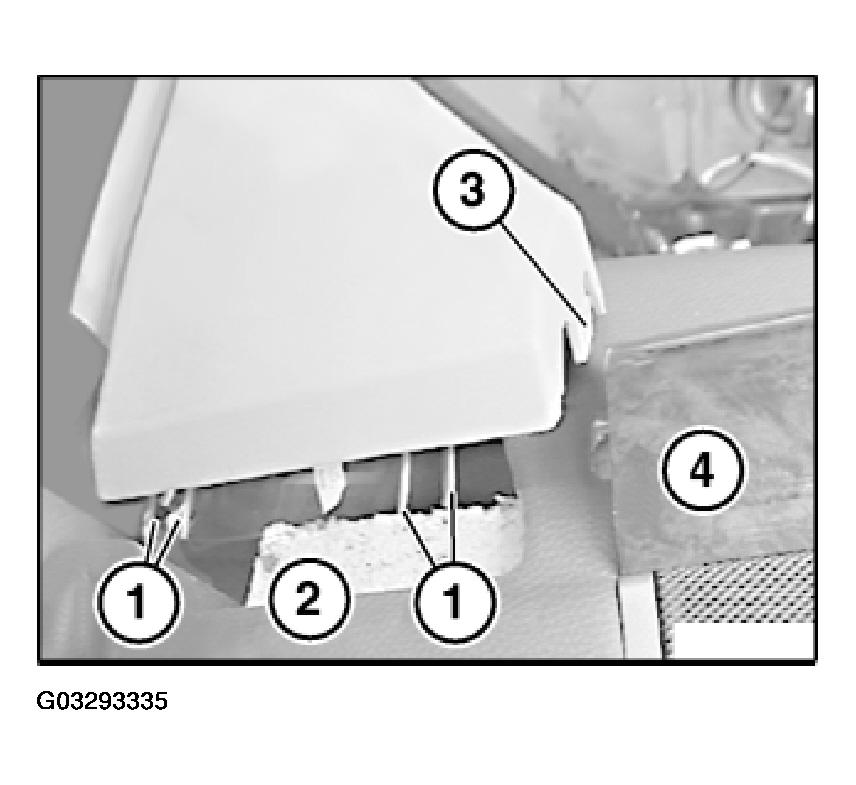

Fig 3: View Of Catch On Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

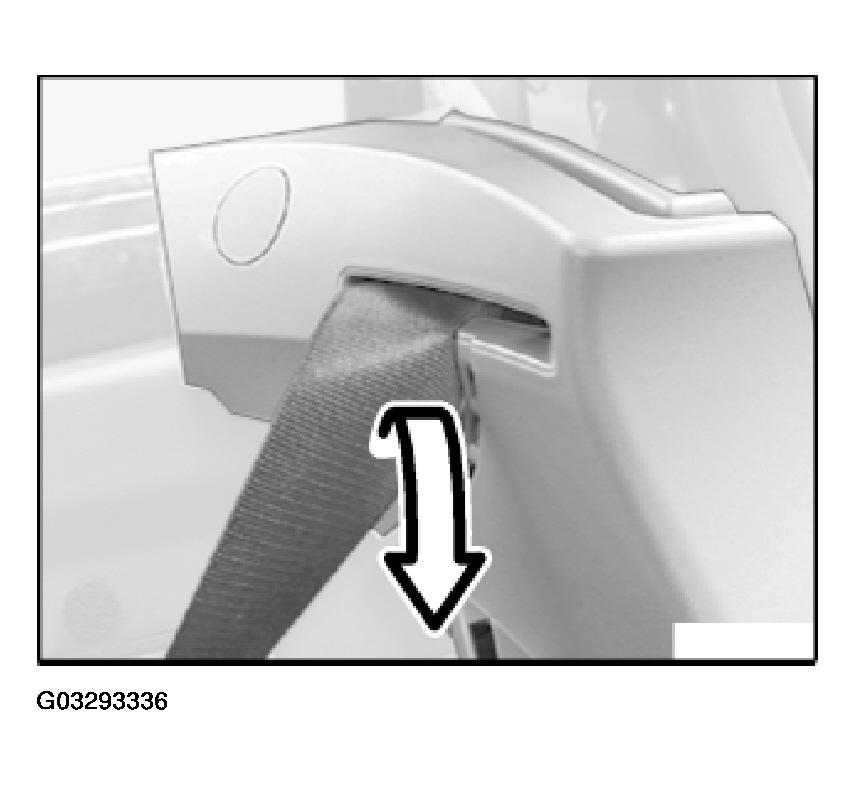

Feed out seat belt and remove trim.

Fig 4: Identifying Seat Belt And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
