62 1 340 Test lead set for airbag
Minimum Set: Measuring And Testing Equipment
TEST LEAD SET FOR AIRBAG SPECIFICATION
| In conjunction with: | 61 1 473 and 61 1 475 |
| Series: | E65, E66 |
| Storage location: | O 216, O 217, O 218 |
| SI number: | 2 03 02 (824) |
| Order number: | 62 1 340 |

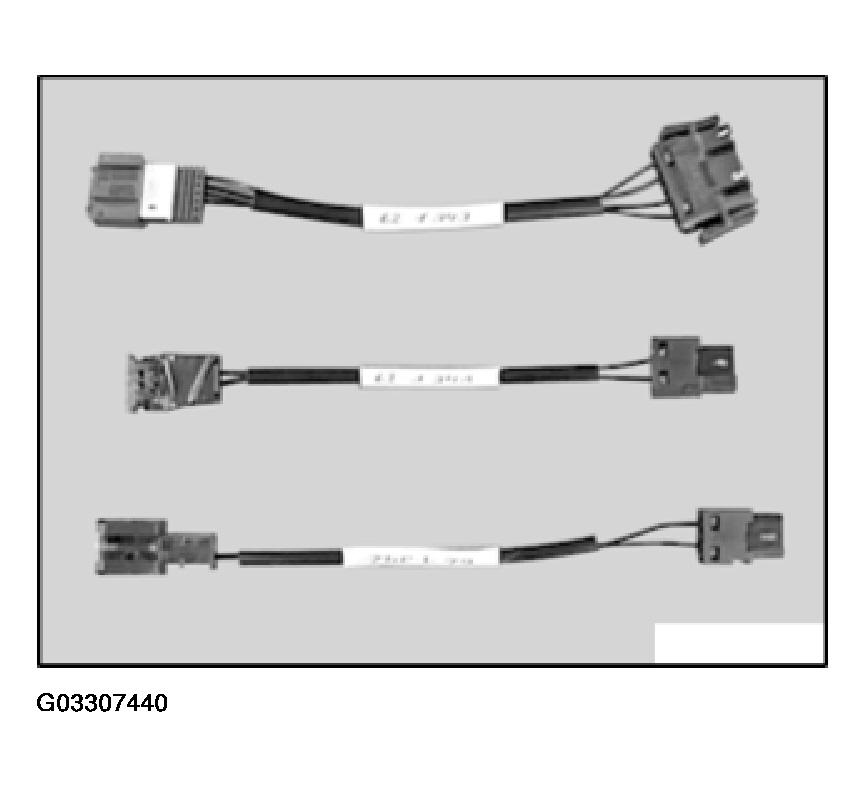

| Test lead set for airbag | |
| Consisting of: | |
| 1 = 62 1 341 | Test lead |
| Note: For side airbag, head airbag and rear seatbelt tensioner | |
| 2 = 62 1 342 | Test lead |
| Note: For front seatbelt tensioner and safety battery terminal | |
| 3 = 62 1 343 | Test lead |
| Note: For driver's and passenger airbags |
