11 9 460 Gauge

Minimum set: Mechanical tools

Note: For locating camshaft in TDC position

Engine: N62, N62TU, N73

Storage location: B45

SI number: 1 14 01 (766)

Order number: 11 9 460

Gauge

Consisting of:

1 = 11 9 461 Gauge, inlet camshaft

2 = 11 9 462 Gauge, exhaust camshaft

3 = 11 9 463 Holder with screw

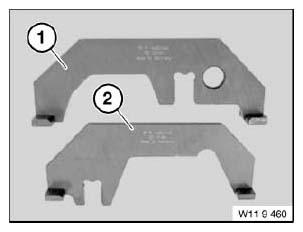

Fig 1: Identifying Gauge
G04745081Courtesy of BMW OF NORTH AMERICA, INC.
