INTEGRATED SUPPLY MODULE (545i)

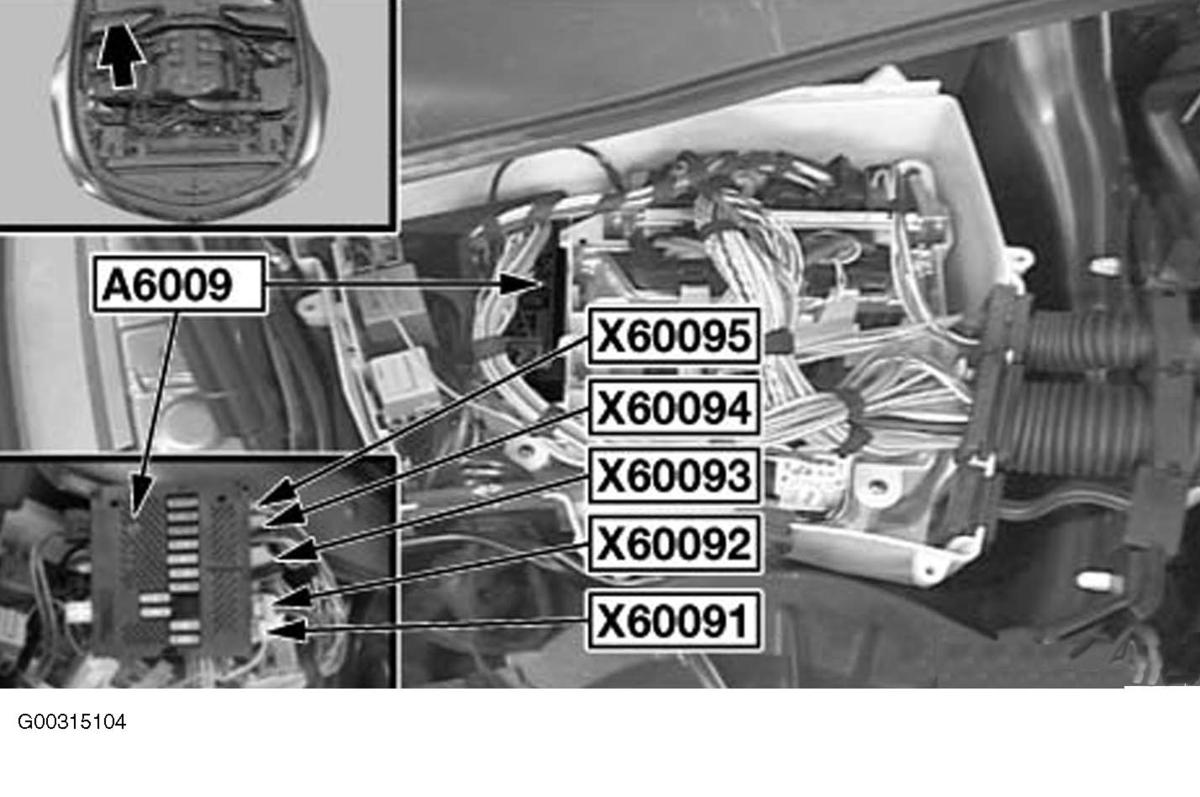

The integrated supply module is located in right rear of engine compartment. See Fig 1. The integrated supply module contains the following fuses:
- F001 - 30 Amp - Variable valve timing gear control module and fuel injectors 5-8.
- F002 - 20 Amp - Fuel tank vent valve, bank 2 camshaft sensors and bank 2 VANOS solenoid valves.
- F003 - 20 Amp - Ignition coils 1-4.
- F004 - 20 Amp - Ignition coils 5-8.
- F005 - 30 Amp - Crankshaft sensor, hot-film air mass meter, bank 1 camshaft sensors, characteristic map thermostat, and bank 1 VANOS solenoid valves.
- F006 - 20 Amp - Fuel injectors 1-4.
- F007 - 20 Amp - Sequential Manual Transmission (SMG).
- F008 - 30 Amp - Oil quality sensor and oxygen sensors.
- F009 - 10 Amp - Fuel pump relay, exhaust flap, radiator shutter solenoid switch, E-box fan, fuel tank leakage diagnostic module and secondary air pump relay.
- F010 - 40 Amp - Relay 1 variable valve timing gear control module.
- F011 - 40 Amp - Relay 2 variable valve timing gear control module.
