Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 BMW 745i, 2004 BMW 745Li, 2003 BMW 745i, 2003 BMW 745Li, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ear clip by placing special tool (32 1 260) at right angles to ear and cut ear open. See Fig 1.
  2. The ear clip can be fitted not only axially but also radially after the hook fastener has been opened. See Fig 2.
  3. To install, attach hook fastener and press ear together with special tool (32 1 260). See Fig 3.
  4. Side cutter of special tool (32 1 260) can be used in areas which are difficult to access. See Fig 4.
  5. Ensure that gap (A) is no more than .04" (1 mm). See Fig 5.

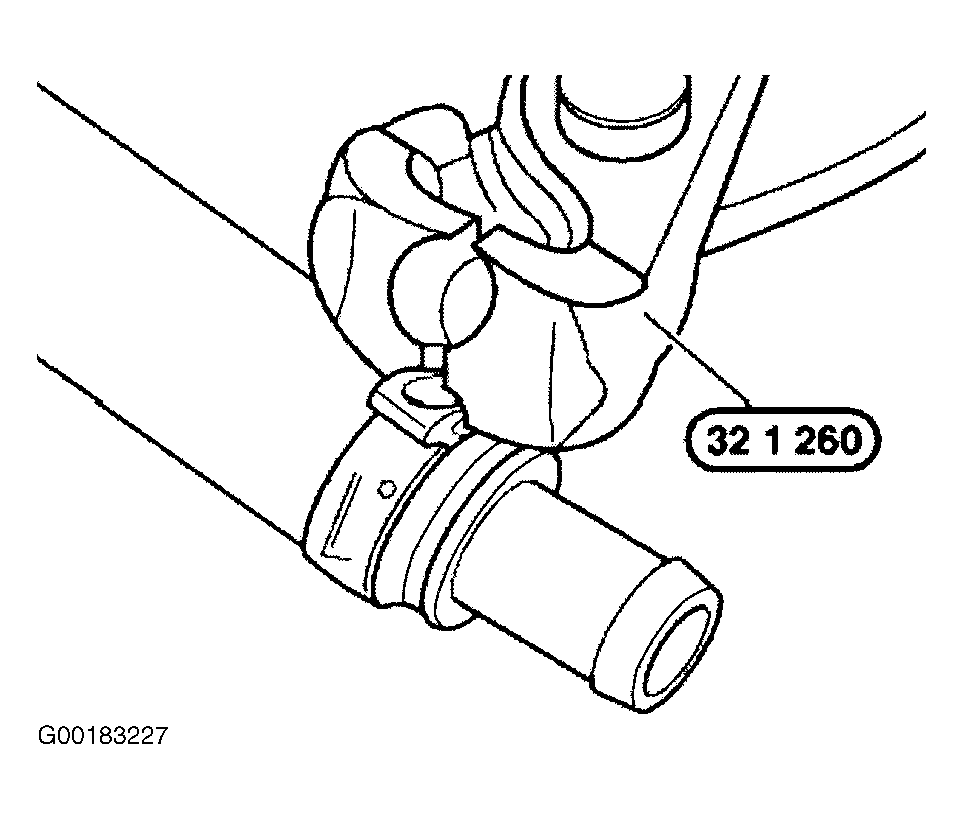

Fig 1: Removing Ear Clip
G00183227Courtesy of BMW OF NORTH AMERICA, INC.

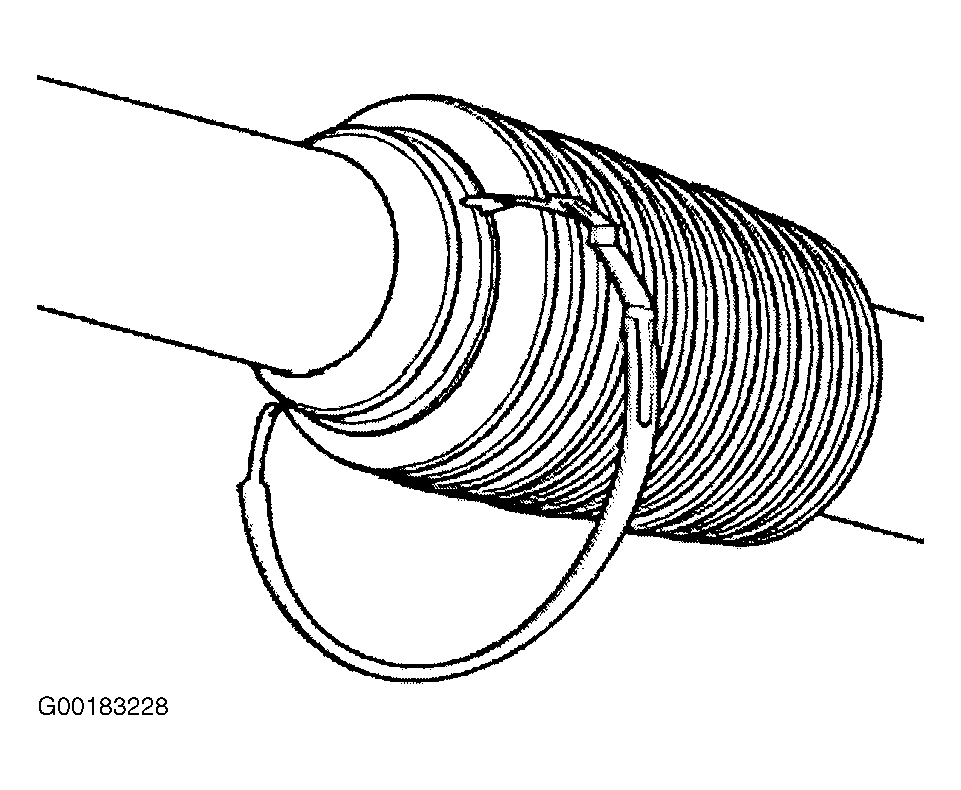

Fig 2: Fitting Ear Clip
G00183228Courtesy of BMW OF NORTH AMERICA, INC.

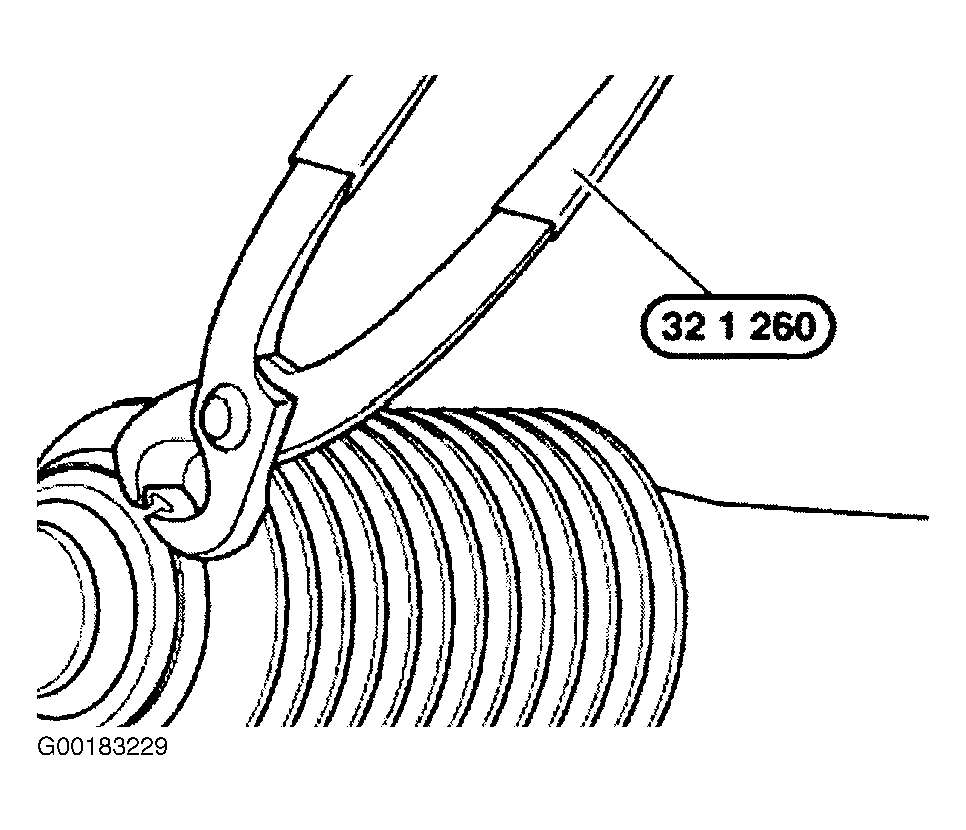

Fig 3: Pressing Ear Clip Together
G00183229Courtesy of BMW OF NORTH AMERICA, INC.

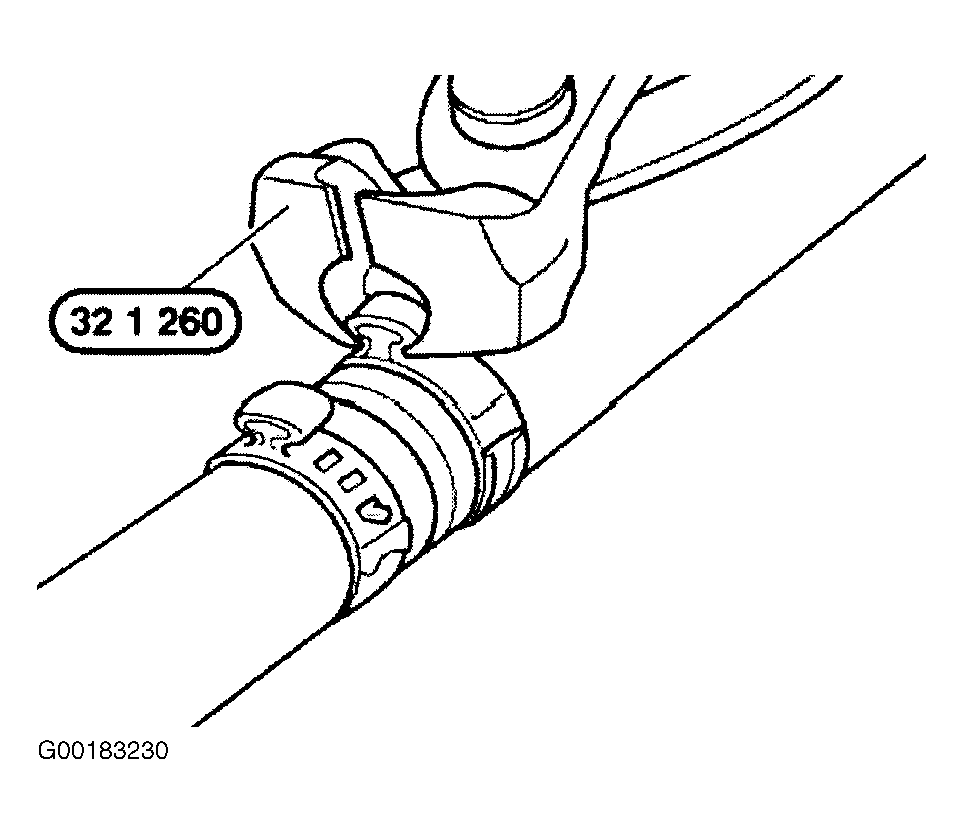

Fig 4: Using Side Cutter
G00183230Courtesy of BMW OF NORTH AMERICA, INC.

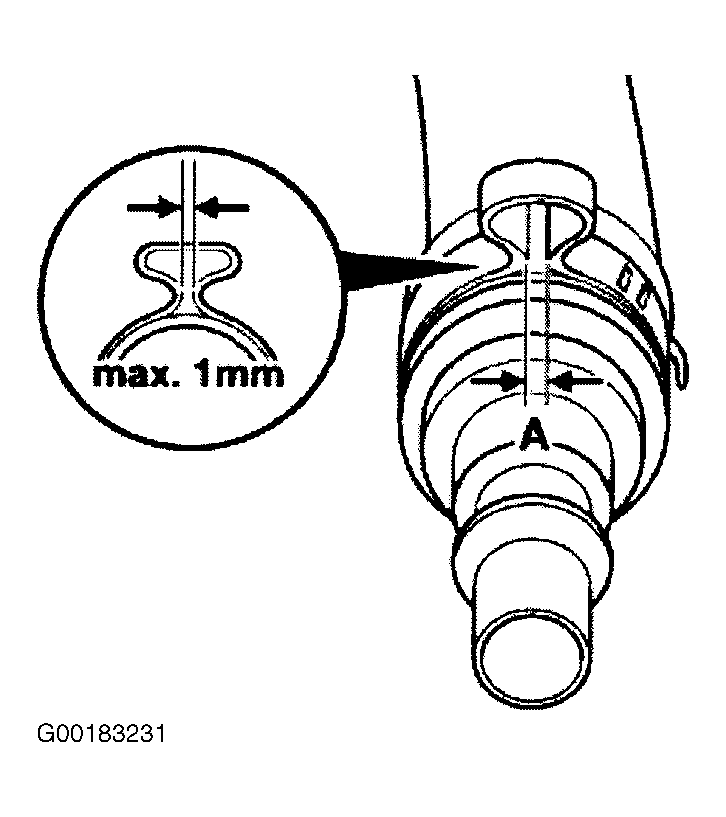

Fig 5: Measuring Gap
G00183231Courtesy of BMW OF NORTH AMERICA, INC.
