Removal & Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower section of steering spindle. See STEERING SPINDLE (LOWER SECTION)  .
  2. Pull sleeve out of bulkhead. See Fig 1 .
  3. Arrow with LHD lettering (1) on sleeve must be aligned with arrow (2) in bulkhead. Attach new sleeve to bulkhead. Insert plastic ring (3) in sleeve. See Fig 1 .

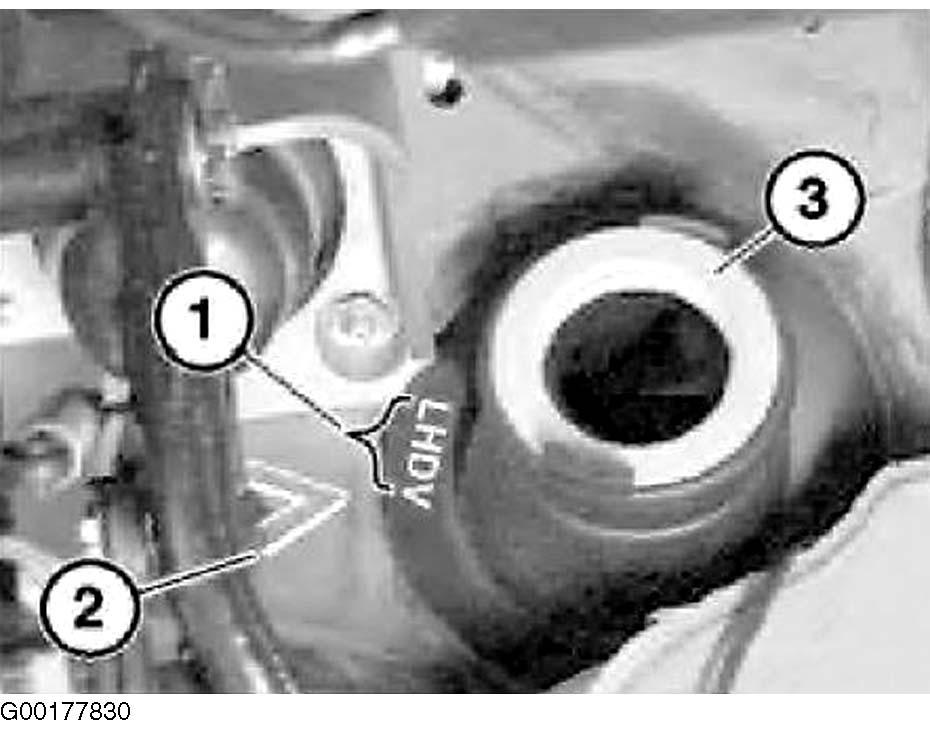

Fig 1: Pulling Sleeve Out Of Bulkhead
G00177830Courtesy of BMW OF NORTH AMERICA, INC.
