Removal & Installation

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support front of vehicle. Remove wheel.
Remove brake disc. Brake line remains connected. Remove ABS pulse sensor. See appropriate ANTI-LOCK/TRACTION CONTROL article in BRAKES.
Slacken screw connection for spring strut tube/swivel bearing. See STRUT ASSEMBLY .
Pull swivel bearing downward to gain access to all bolts (1). Remove 4 bolts (1) and remove wheel bearing. See Fig 1 .
Contact faces (2) of wheel bearing and swivel bearing must be clean and free of grease. Clean tapped holes (1) in wheel bearing. See Fig 2 .
Install bolts (1) with washers (2). See Fig 1 .
To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

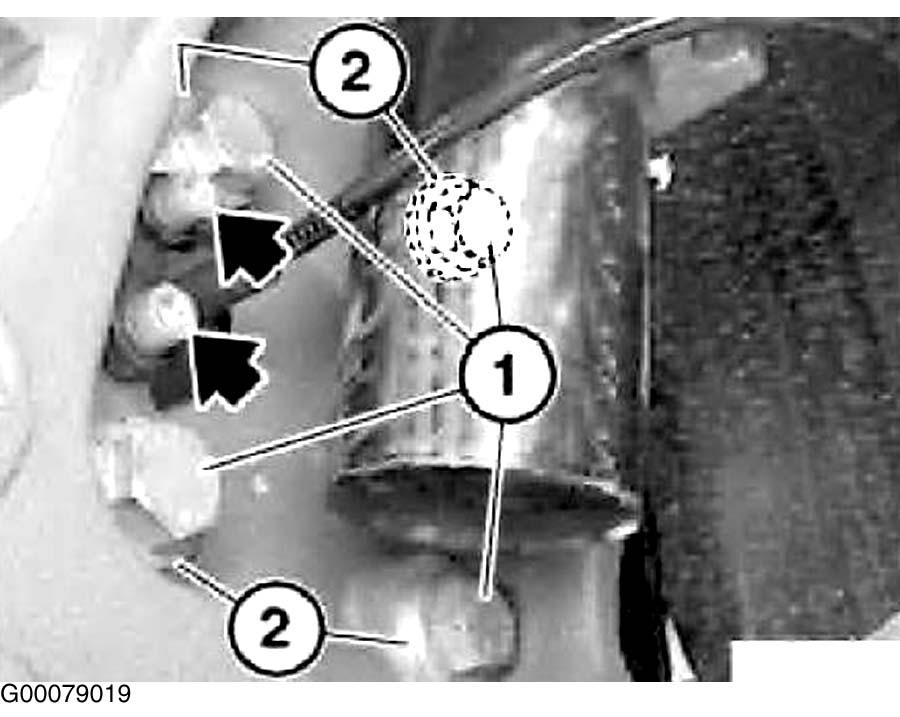

Fig 1: Locating Swivel Bearing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Exploded View Of Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
