Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

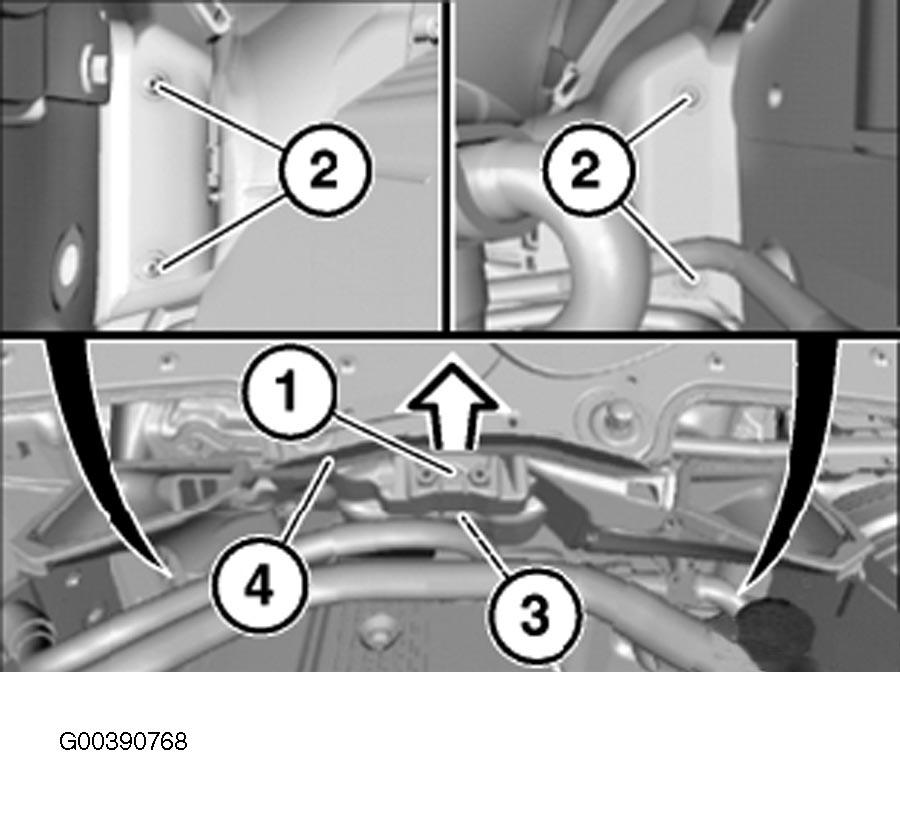

Remove microfilter housing lower sections on left and right. See CABIN AIR FILTER . Remove engine compartment tension strut on spring strut dome. See TENSION STRUT . Unscrew bolt (1). Loosen screws (2). Turn quick-release fastener (3) approximately 90 degrees counterclockwise. If necessary, release screw on pipe clamp. Feed out fresh air duct (4) in direction of arrow and remove. If necessary, replace damaged seals. Make sure fresh air duct (4) is correctly seated. See Fig 1 .
