Chassis Dynamic - Overview - 525I, 530I, 545I (E60)
>>
E60 Chassis Dynamic
>>
Dynamic Stability Control DSC8
>>
DSC System Overview
DSC System Overview

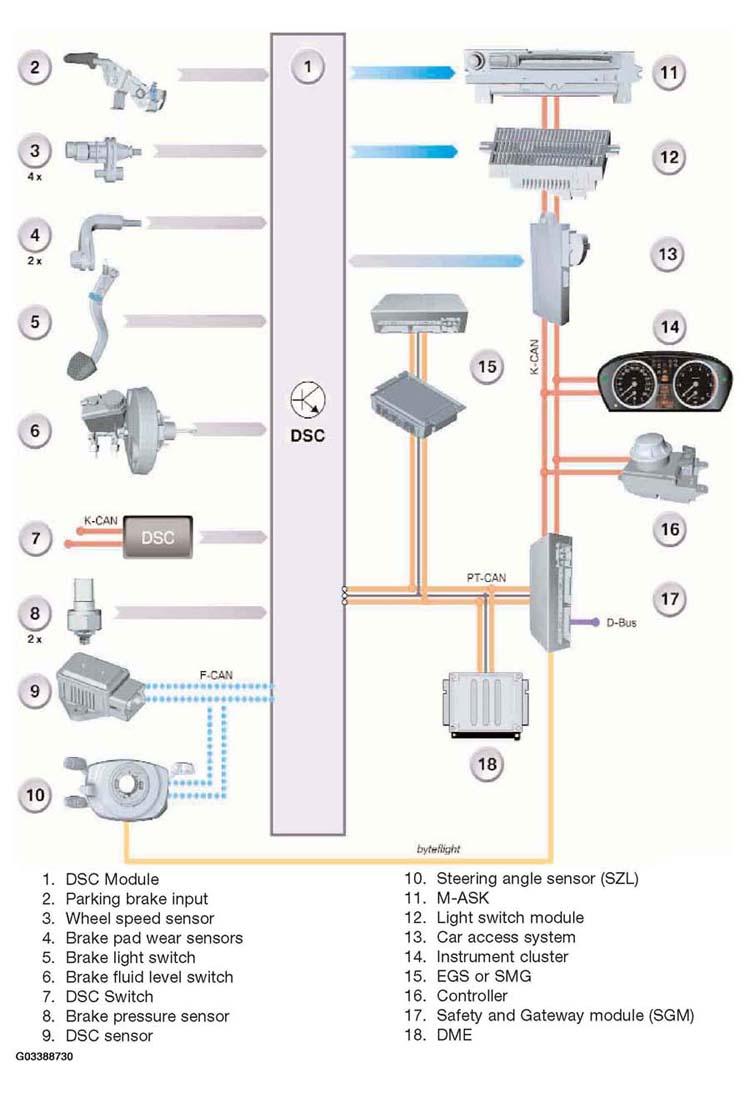

Fig 1: Identifying DSC System Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
